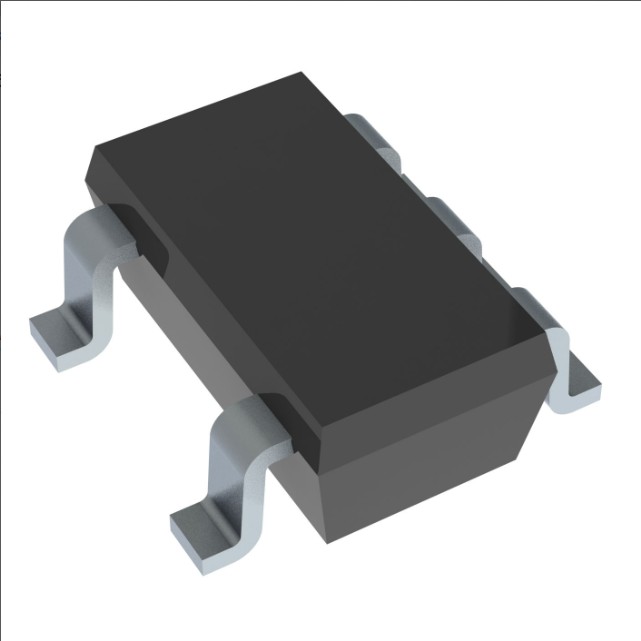

Manufacturer Part Number: LM7301IM5X/NOPB Manufacturer / Brand: Texas Instruments
Part of Description: SoC FPGA LM7301IM5X/NOPB Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS

Product parameters

ManufacturerTexas Instruments
Package / CaseSOT-23-5
Mounting StyleSMD/SMT
BrandTexas Instruments
Maximum Operating Temperature-40 C
Minimum Operating Temperature+85C
Length2.92 mm
Moisture SensitiveYes
Factory Pack Quantity3000
Unit Weight0.000222 oz
Pd – Power Dissipation350 mW
Voltage Gain dB97.03 dB
Width1.6 mm
Height1.02 mm
