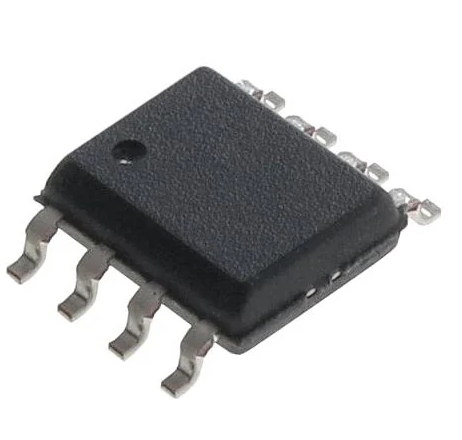

W25Q16JVSNIQ

Manufacturer Part Number: W25Q16JVSNIQ Manufacturer / Brand: Winbond
Part of Description: NOR Flash spiFlash, 3V, 16M-bit, 4Kb Uniform Sector Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerWinbond
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseSOIC-8
SeriesW25Q16JV
Memory Size16 Mbit
PackagingTray
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
Factory Pack Quantity100
SubcategoryMemory & Data Storage
TradenameSpiFlash
Unit Weight0.007408 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The W25Q16JVSNIQ is a 16-Mbit Serial Flash memory from Winbond Electronics, designed for use in a variety of embedded systems requiring non-volatile storage. This memory device utilizes a Serial Peripheral Interface (SPI) for efficient data transfer and is ideal for applications such as firmware storage, configuration data, and code execution.

    Key Features:

    • 16-Mbit Capacity: Provides 2 MB of storage, offering ample space for code, data, and configuration storage.
    • Serial SPI Interface: Features a high-speed SPI interface for fast data transfer and ease of integration into digital systems.
    • High-Speed Read Operations: Supports fast read speeds of up to 104 MHz, enabling quick access to stored data.
    • Dual/Quad I/O: Supports Dual/Quad I/O modes, which allow for higher data throughput by utilizing multiple data lines.
    • Low Power Consumption: Designed for low power consumption with power-saving features including deep power-down mode.
    • Byte and Page Programming: Allows for flexible data programming with byte and page write operations.
    • Sector Protection: Includes sector protection features to safeguard critical data from accidental modification.
    • Small Package: Available in an 8-pin SOIC (Small Outline Integrated Circuit) package, making it suitable for compact designs.

    Typical Applications:

    • Firmware Storage: Ideal for storing firmware and boot code in embedded systems and microcontrollers.
    • Configuration Data: Used to store configuration settings and calibration data in various electronic devices.
    • Code Execution: Suitable for executing code directly from Flash memory in systems with limited RAM.
    • Consumer Electronics: Applied in consumer devices such as digital cameras, set-top boxes, and home appliances.

    The W25Q16JVSNIQ is recognized for its high-speed performance, low power consumption, and compact package, making it a versatile choice for non-volatile memory storage in a wide range of embedded applications.
