VN920SPTR-E

Manufacturer Part Number: VN920SPTR-E Manufacturer / Brand: ST
Part of Description: Gate Drivers 30A 36V HIGH SIDE Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerST
DetailsRoHS
Mounting StyleSMD/SMT
Package / CasePowerSO-10
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+150 C
PackagingReel
Moisture SensitiveYes
Pd – Power Dissipation96.1 W
Factory Pack Quantity600
Product TypeGate Drivers
SubcategoryPMIC – Power Management ICs
TechnologySi
Unit Weight0.040212 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

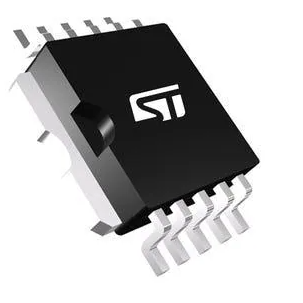

    The VN920SPTR-E is a high-side driver from STMicroelectronics, designed using the VIPower™ M0-3 technology. It is a monolithic device intended for driving any type of load with one side connected to ground. The VN920SPTR-E offers several key features that make it suitable for a wide range of applications.

    With an RDS(on) of 15 mΩ and an IOUT of 30 A, the VN920SPTR-E can handle significant current loads. It also boasts a high VCC of 36 V, making it suitable for applications requiring higher voltage levels. The device integrates an analog current sense output, which delivers a current proportional to the load current, providing valuable feedback for system monitoring and control.

    The VN920SPTR-E includes several protection features to ensure reliable operation. It features undervoltage shutdown, overvoltage clamp, and load current limitation to protect against potential damage from electrical spikes and overloads. Additionally, the device incorporates thermal shutdown protection and automatic restart, which further enhances its robustness in harsh environments.

    The VN920SPTR-E is compliant with AEC guidelines, making it suitable for automotive applications. It is also lead-free and RoHS compliant, ensuring environmental friendliness. The device is packaged in a PowerSO-10™ package, which is suitable for high-density applications and provides good thermal performance.

    Overall, the VN920SPTR-E is a versatile and reliable high-side driver that offers high current handling capability, robust protection features, and compliance with automotive and environmental standards. It is suitable for a wide range of applications, including automotive, industrial, and consumer electronics.
