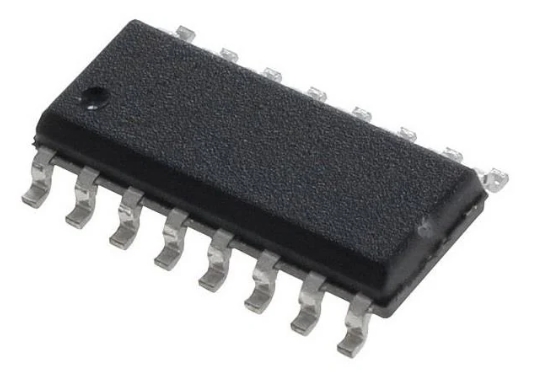

ULQ2003D1013TRY

Manufacturer Part Number: ULQ2003D1013TRY Manufacturer / Brand: ST
Part of Description: Darlington Transistors Seven Darlington array Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerST
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOIC-Narrow-16
PackagingReel
Height1.75 mm
Length10 mm
Factory Pack Quantity2500
SubcategoryTransistors
Moisture SensitiveYes
Width4 mm
Unit Weight0.007079 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The ULQ2003D1013TRY is a high-voltage, high-current Darlington transistor array designed for driving inductive loads such as relays, solenoids, motors, and LED displays. It consists of seven NPN Darlington pairs, each capable of sinking up to 500mA, with a peak current of 600mA per channel. The integrated freewheeling diodes provide protection against back electromotive force (EMF) generated by inductive loads.

    Key features of the ULQ2003D1013TRY include:

    • Wide operating voltage: Up to 50V
    • High-current sinking: 500mA per channel
    • Built-in clamp diodes for inductive load protection
    • Input compatible with TTL and CMOS logic
    • 7-channel configuration, suitable for multiple control applications
    • Offered in a compact SOIC-16 package, ideal for space-constrained designs.

    This device is commonly used in applications such as printer mechanisms, relay control systems, LED matrix displays, and industrial automation, providing a reliable interface between logic-level signals and high-power devices.
