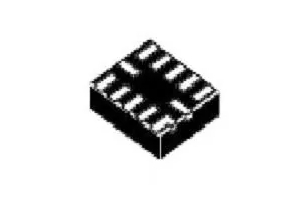

TXB0104RUTR

Manufacturer Part Number: TXB0104RUTR Manufacturer / Brand: TI
Part of Description: Translation - Voltage Levels 4B Bidir Vltg-Level Translator Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseUQFN-12
Supply Voltage – Max5.5 V
Supply Voltage – Min1.2 V, 1.65 V
PackagingReel
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
Factory Pack Quantity3000
SubcategoryLogic ICs
Part # AliasesHPA01164RUTR
Unit Weight0.000166 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The TXB0104RUTR is a 4-bit bidirectional voltage-level translator from Texas Instruments. It is designed for translating logic levels between different voltage domains, making it useful for interfacing between components operating at different voltage levels. Key features and specifications include:

    1. Bidirectional Translation:
      • 4-Bit Capability: Provides bidirectional voltage-level translation for up to 4 data lines, allowing communication between devices with different I/O voltage levels.
    2. Wide Voltage Range:
      • I/O Voltage Range: Supports a wide range of I/O voltages from 1.2V to 3.6V, accommodating a variety of logic levels.
      • Power Supply Voltage: Operates with a VCCA voltage range of 1.2V to 3.6V and a VCCB voltage range of 1.8V to 5.5V, making it versatile for interfacing between low-voltage and standard logic levels.
    3. Automatic Direction Sensing:
      • No Direction Control: Features automatic direction sensing, eliminating the need for direction control pins. This simplifies the design and integration process.
    4. Low Power Consumption:
      • Power Efficiency: Designed with low power consumption, making it suitable for battery-powered and portable devices.
    5. High-Speed Operation:
      • Speed: Capable of supporting high-speed data rates, typically up to 100 Mbps, ensuring reliable performance in fast data communication applications.
    6. Package Type:
      • 10-Pin VQFN Package: Housed in a 10-pin Very Thin Quad Flat No-lead (VQFN) package, offering a compact and space-efficient form factor.
    7. Applications:
      • Level Shifting: Ideal for interfacing between devices with different logic voltage levels, such as in mixed-voltage systems.
      • Data Communication: Suitable for high-speed data communication between components in digital systems.
      • Microcontroller and Peripheral Interface: Useful for connecting microcontrollers to peripherals operating at different voltage levels.

    The TXB0104RUTR provides a reliable and efficient solution for level shifting in digital communication systems, enabling seamless integration between devices with varying voltage requirements.
