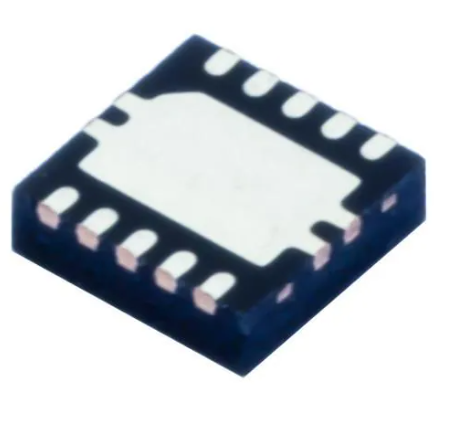

TPS74801DRCR

Manufacturer Part Number: TPS74801DRCR Manufacturer / Brand: TI
Part of Description: LDO Voltage Regulators 1.5A with Soft-Start Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseVSON-10
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+125 C
PackagingReel
Moisture SensitiveYes
Reference Voltage804 mV
Factory Pack Quantity100
SubcategoryPMIC – Power Management ICs
Voltage Regulation Accuracy0.5 %
Width3 mm
Unit Weight0.000917 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The TPS74801DRCR is a high-performance, low-dropout (LDO) linear voltage regulator designed for a wide range of applications. It offers a robust and easy-to-use power management solution that is suitable for various electronic systems and devices.

    Key Features:

    • Programmable Soft-Start: The TPS74801DRCR features a user-programmable soft-start function that reduces inrush current during startup, minimizing stress on the input power source. This ensures a smooth and controlled startup process for the device.
    • Wide Input and Output Voltage Range: The regulator accepts an input voltage range of 0.8V to 5.5V and provides an adjustable output voltage range of 0.8V to 3.6V. This flexibility allows it to be used in a variety of applications with different voltage requirements.
    • High Accuracy and Precision: The TPS74801DRCR boasts a high-precision reference voltage circuit and error amplifier, providing an accuracy of 2% over the entire load, line, temperature, and process ranges. This ensures stable and reliable voltage regulation.
    • Low Dropout Voltage: The LDO regulator exhibits a low dropout voltage of 60mV at 1.5A and VBIAS = 5V, making it efficient and suitable for low-voltage applications.
    • Power Good (PG) Output: The device includes a power good (PG) output that indicates when the output voltage is within the specified range, providing a power monitoring signal or timing signal for other power supplies.
    • Excellent Transient Response: The TPS74801DRCR supports low VIN operation and exhibits good transient response, ensuring stable and reliable voltage regulation under varying load conditions.
    • Compact Package: The regulator is available in small 3mm x 3mm VSON-10 and 5mm x 5mm VQFN-20 packages, enabling a highly compact and space-efficient solution for power management.

    Applications:

    The TPS74801DRCR is ideal for a wide range of applications, including:

    • Enterprise-level network-attached storage (NAS)
    • Rack-mounted servers
    • Network interface cards (NICs)
    • Commercial networking and server power supply units (PSUs)
    • FPGA, DSP, and other applications with special startup requirements
    • Battery-powered devices requiring stable power supply, such as smartphones, tablets, laptops, and more

    Benefits:

    • Ease of Use: The TPS74801DRCR offers a straightforward and robust power management solution that is easy to integrate into electronic systems.
    • Reliability: With high accuracy, precision, and stable performance, the regulator ensures reliable voltage regulation for various applications.
    • Flexibility: The adjustable output voltage range and wide input voltage range make the TPS74801DRCR versatile and suitable for a variety of applications.
    • Space-Saving: The compact package size allows for a highly space-efficient power management solution.

    In summary, the TPS74801DRCR is a high-performance LDO linear voltage regulator that offers a combination of key features and benefits, making it an ideal choice for various applications requiring precise and reliable power management.
