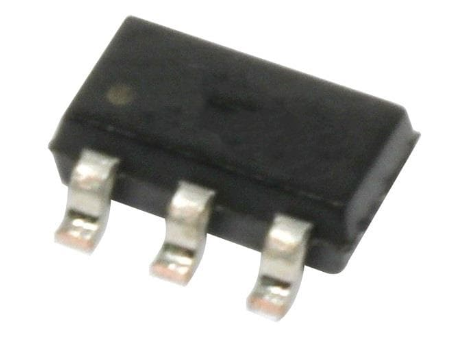

TPS563201DDCR

Manufacturer Part Number: TPS563201DDCR Manufacturer / Brand: TI
Part of Description: Switching Voltage Regulators 4.5 V to 17 V input, 3 A output, synchronous step-down converter in Eco-mode 6-SOT-23-THIN -40 to 125 Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseTSOT-23-6
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+125 C
PackagingReel
Moisture SensitiveYes
Input Voltage4.5 V to 17 V
Factory Pack Quantity3000
SubcategoryMemory & Data Storage
TypeSynchronous Step-Down Voltage Regulator
Width1.75 mm
Unit Weight0.000370 oz
