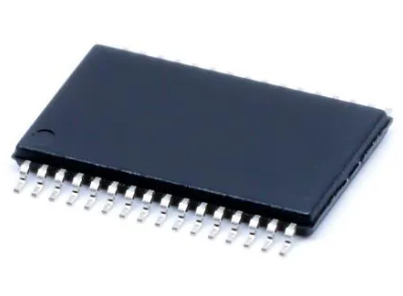

TPA3118D2DAPR

Manufacturer Part Number: TPA3118D2DAPR Manufacturer / Brand: TI
Part of Description: Audio Amplifiers 50W Stereo Class-D Audio Amp Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseHTSSOP-32
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingTube
Moisture SensitiveYes
Development KitTPA3118D2EVM
Factory Pack Quantity2000
PSRR – Power Supply Rejection Ratio70 dB
SubcategoryAudio ICs
Type2-Channel Stereo
Unit Weight0.006388 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The TPA3118D2DAPR is a high-efficiency, Class-D audio power amplifier produced by Texas Instruments (TI). It is designed to deliver up to 2 x 30W of output power in stereo mode or up to 60W in mono mode, making it suitable for driving a wide range of speakers. The device operates from a power supply voltage range of 4.5V to 26V and features analog input capabilities.

    The TPA3118D2DAPR incorporates advanced oscillator/PLL circuitry with multiple switching frequency options to suppress AM interference, ensuring clean and distortion-free audio output. It also supports synchronization of multiple devices when used in master-slave configurations. With its compact HTSSOP-32 package, the TPA3118D2DAPR is easy to integrate into space-constrained circuit boards.

    In addition to its high power output and efficiency, the TPA3118D2DAPR offers comprehensive protection features, including short-circuit protection, thermal protection, overvoltage protection, undervoltage protection, and DC protection. These features ensure the safe operation of the device under adverse conditions and prevent damage in overload situations.

    The TPA3118D2DAPR is ideal for a variety of applications, including home audio systems, portable audio devices, professional audio equipment, automotive audio systems, and industrial audio signal amplification. It provides a high-fidelity audio experience with low distortion and high sound quality, making it a suitable choice for high-end audio applications.

    Overall, the TPA3118D2DAPR is a versatile and reliable audio power amplifier that combines high efficiency, compact size, and advanced protection features, making it an excellent choice for developers looking to create sophisticated audio systems.
