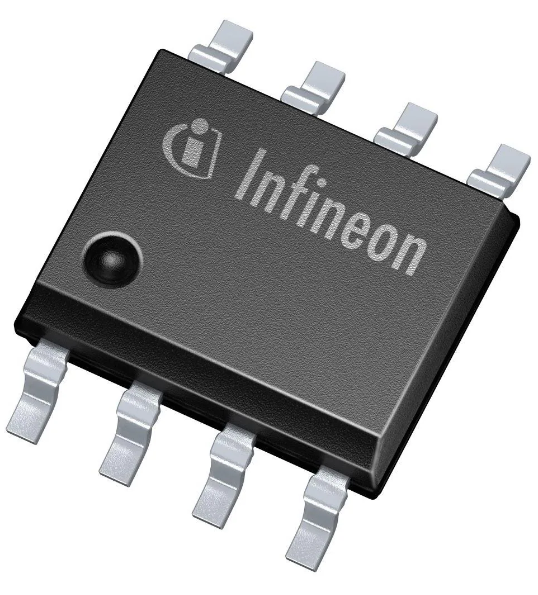

TLE5012B E1000

Manufacturer Part Number: TLE5012B E1000 Manufacturer / Brand: Infineon
Part of Description: Board Mount Hall Effect / Magnetic Sensors GMR Based Angle Sensor 6.5V Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerInfineon
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseDSO-8
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 150 C
Operating Supply Voltage5 V
PackagingReel
Rise Time20 ns
SubcategorySensors
Factory Pack Quantity2500
With SwitchWithout Switch
Unit Weight0.002947 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The TLE5012B E1000 is a high-precision magnetic angle sensor designed for contactless position measurement in various automotive and industrial applications. This sensor provides reliable and accurate angular data, making it suitable for applications requiring high performance and robustness.

    Key Features:

    • Contactless Measurement: Utilizes Hall-effect technology for non-contact angle measurement, ensuring long operational life and reduced wear.
    • High Accuracy: Offers precise angular measurement with an accuracy of up to ±0.5° over a wide temperature range, ensuring reliable performance in diverse conditions.
    • Wide Operating Range: Supports an operating temperature range from -40°C to +125°C, making it ideal for automotive and harsh industrial environments.
    • Digital Output: Provides a digital SPI (Serial Peripheral Interface) output for easy integration with microcontrollers and other digital systems.
    • Programmable Settings: Features programmable settings, allowing customization of measurement parameters and output formats to meet specific application requirements.
    • Robust Design: Built with automotive-grade components, ensuring high reliability and resilience against environmental stressors such as humidity, temperature variations, and vibrations.

    Applications:

    • Automotive Systems: Used for steering angle, throttle position, and other critical applications in vehicles requiring precise position sensing.
    • Industrial Automation: Ideal for robotic arms, conveyor systems, and other machinery where accurate angular measurement is essential.
    • Consumer Electronics: Applied in devices needing reliable angle detection, such as joysticks and game controllers.

    The TLE5012B E1000 provides a reliable and accurate solution for contactless angle sensing, making it a valuable component in automotive, industrial, and consumer applications.
