TPS7A4701RGWR

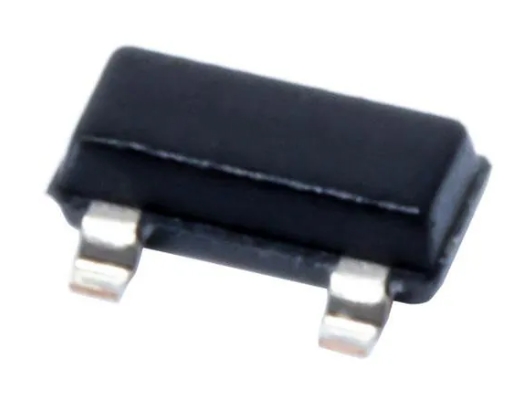

Manufacturer Part Number: TL431BIDBZR Manufacturer / Brand: TI
Part of Description: Voltage References Adjustable Precision Shunt Regulator Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseSOT-23-3
Reference TypeShunt Adjustable Precision References
Output VoltageAdjustable
PackagingReel
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
Factory Pack Quantity3000
SubcategoryPMIC – Power Management ICs
Width1.3 mm
Unit Weight0.000282 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The TL431BIDBZR is a precision programmable shunt voltage reference from Texas Instruments, widely used for voltage regulation and precision monitoring in various electronic circuits. This device provides an adjustable output voltage and operates as a low-temperature-coefficient zener diode, offering stable and accurate voltage reference.

    Key Features:

    • Adjustable Output Voltage: The TL431BIDBZR allows for an output voltage adjustment range from 2.495V to 36V, making it versatile for different applications.
    • High Precision: Features a tight voltage tolerance of ±1% (typical) with low temperature coefficient, ensuring stable performance over a wide temperature range.
    • Low Temperature Coefficient: Designed with a low temperature coefficient of 30 ppm/°C, maintaining voltage accuracy across varying temperatures.
    • Wide Operating Range: Supports a wide operating cathode current range from 1 mA to 100 mA, offering flexibility in various circuit designs.
    • Low Output Impedance: Provides low dynamic output impedance, typically 0.22Ω, for improved load regulation.
    • Stability: Exhibits excellent stability, making it suitable for use in control loops and as a reference voltage in high-precision analog circuits.
    • Small Package: Available in a SOT-23-3 package, ideal for space-constrained designs.

    Typical Applications:

    • Power Supplies: Used in linear and switching power supplies for voltage regulation and output monitoring.
    • Voltage Monitoring: Applied in battery-operated devices and power management systems for precise voltage monitoring and regulation.
    • Analog Circuits: Acts as a reference voltage in analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other precision analog circuits.
    • Industrial and Automotive: Suitable for industrial control systems and automotive electronics where reliable voltage regulation is critical.

    The TL431BIDBZR is recognized for its high precision, adjustability, and reliable performance, making it a go-to component for precision voltage reference and regulation in a wide array of electronic applications.
