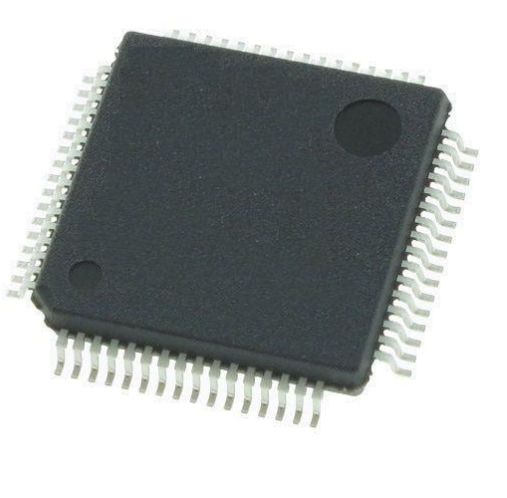

STM32F105RCT6

Manufacturer Part Number: STM32F105RCT6 Manufacturer / Brand: ST
Part of Description: ARM Microcontrollers - MCU 32BIT Cortex 64/25 CONNECTIVITY LINE M3 Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerST
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseTO-247-3
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingTray
Moisture SensitiveYes
Program Memory TypeFlash
Factory Pack Quantity960
SubcategoryMicrocontrollers – MCU
TradenameSTM32
Width10 mm
Unit Weight0.012088 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The STM32F105RCT6 is a high-performance 32-bit microcontroller unit (MCU) from STMicroelectronics, belonging to the STM32F1 Connectivity Line series. It is based on the ARM Cortex-M3 32-bit RISC core, operating at a maximum frequency of 72 MHz. This MCU features a rich set of peripherals and interfaces, making it suitable for a wide range of applications.

    Key Features:

    • Core Architecture: The STM32F105RCT6 is powered by the ARM Cortex-M3 processor, offering high computational power and efficient processing capabilities.
    • Memory: It includes up to 256 KB of Flash memory and 64 KB of SRAM, providing ample storage space for program code and data.
    • Timers: The device features up to 10 timers, including four 16-bit general-purpose timers, one PWM timer for motor control, and two watchdog timers for system monitoring.
    • Analog-to-Digital Converters (ADCs): Two 12-bit ADCs with 16 channels are integrated, enabling high-precision analog measurements.
    • Communication Interfaces: The STM32F105RCT6 supports a variety of communication protocols, including up to five USARTs, two I2C interfaces, three SPI buses, two CAN interfaces, a USB 2.0 OTG full-speed controller, and an Ethernet MAC (available in STM32F107xx variants).
    • I/O Ports: It offers up to 80 high-speed I/O ports, most of which are 5V-tolerant and can be mapped to 16 external interrupt vectors.
    • Power Management: The STM32F105RCT6 includes low-power modes such as Sleep, Stop, and Standby, making it suitable for power-sensitive applications.
    • Debugging and Programming: It supports serial wire debug (SWD) and JTAG interfaces for easy debugging and programming.
    • Package: The device is available in a LQFP64 package with a 10x10mm footprint, providing a compact and efficient solution for embedded systems.

    Applications:

    The STM32F105RCT6 is ideal for a wide range of applications, including industrial automation, smart homes, automotive electronics, medical devices, and consumer electronics. Its high performance, rich peripherals, and compact package make it a versatile choice for developers looking to create efficient and reliable embedded systems.

    This description highlights the main features and benefits of the STM32F105RCT6, making it easier for potential users to understand its capabilities and potential applications.
