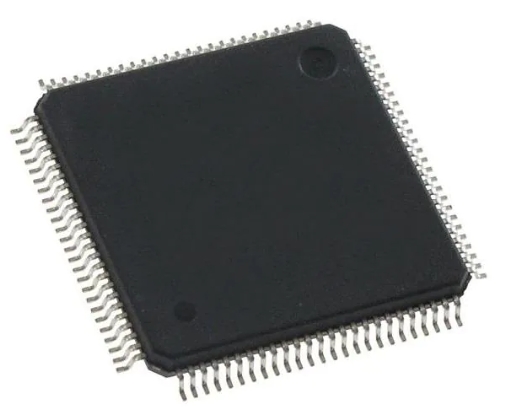

STM32F103VGT6

The STM32F103VGT6 is a microcontroller from STMicroelectronics, part of the STM32F1 series. Here are the key features and specifications:

1. Microcontroller Core:
   • Architecture: ARM Cortex-M3 32-bit RISC processor, providing high performance and efficiency for embedded applications.
2. Memory:
   • Flash Memory: 256 KB of in-system programmable flash memory for code storage.
   • SRAM: 64 KB of static RAM for data storage.
3. Clock Speed:
   • Frequency: Operates at a maximum clock speed of 72 MHz, ensuring fast processing for demanding tasks.
4. I/O Ports:
   • Digital I/O: 37 general-purpose I/O pins for versatile digital operations.
   • Analog Inputs: 12-bit ADC with 16 channels for accurate analog-to-digital conversion.
5. Communication Interfaces:
   • USART: Three Universal Synchronous/Asynchronous Receiver Transmitters for serial communication.
   • SPI: Two Serial Peripheral Interfaces for communication with external devices.
   • I2C: Two Inter-Integrated Circuits (I2C) interfaces for connecting to other I2C-compatible devices.
   • CAN: Two Controller Area Network (CAN) interfaces for robust serial communication in automotive and industrial applications.
6. Timers/Counters:
   • Timers: Three 16-bit timers, one 16-bit advanced timer, and two 16-bit basic timers for precise timing and counting operations.
   • PWM: Pulse-width modulation outputs for controlling motors and other devices.
7. Additional Features:
   • Watchdog Timer: Integrated watchdog timer for system recovery in case of software faults.
   • Real-Time Clock (RTC): Built-in real-time clock for timekeeping applications.
   • Brown-out Detection: Detects low voltage conditions to ensure reliable operation.
8. Package Type:
   • Package: Available in a 64-pin LQFP (Low-profile Quad Flat Package) for compact and reliable designs.
9. Applications:
   • Embedded Systems: Suitable for a wide range of embedded applications including industrial control, consumer electronics, and automotive systems.
   • Communication Systems: Ideal for applications requiring multiple communication interfaces and robust performance.

The STM32F103VGT6 offers a high-performance solution for embedded system development, providing a rich set of features and interfaces to support diverse application requirements.
