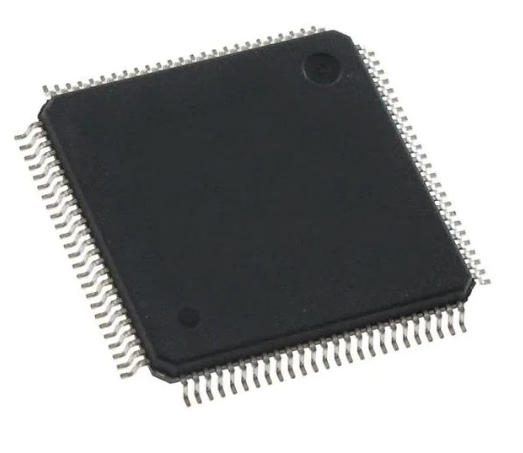

STM32F103VCT6

The STM32F103VCT6 is a powerful and versatile microcontroller from STMicroelectronics, part of the STM32F1 series based on the ARM Cortex-M3 core. Operating at a maximum clock speed of 72 MHz, this microcontroller is designed for a wide range of applications, including industrial control systems, medical devices, automotive applications, and consumer electronics.

Key Features:

1. Core Architecture:
   • ARM Cortex-M3 32-bit RISC core, offering high performance and low power consumption.
   • Supports both Thumb and Thumb-2 instruction sets for efficient code execution.
2. Memory:
   • Flash Memory: 512 KB of Flash memory for program storage, allowing for complex applications and firmware updates.
   • SRAM: 64 KB of SRAM, providing ample space for data handling and processing during execution.
3. Operating Voltage:
   • Operating voltage range from 2.0V to 3.6V, making it suitable for battery-operated devices.
4. Peripheral Interfaces:
   • GPIO: Up to 37 GPIO pins, configurable for various functions, allowing flexible interfacing with external components.
   • Communication Interfaces:
     • I2C, SPI, USART, and CAN interfaces, enabling communication with a wide variety of devices and sensors.
     • USB 2.0 full-speed interface for direct connection to USB devices.
5. Timers and PWM:
   • Multiple timers, including advanced-control timers for motor control applications, and general-purpose timers for basic timing functions and PWM signal generation.
6. Analog Features:
   • 12-bit ADC with up to 16 channels for precise analog-to-digital conversion, ideal for applications requiring sensor data processing.
   • Comparators and DAC features for signal processing applications.
7. Development Ecosystem:
   • Compatible with various development tools and software, including STM32CubeMX and STM32CubeIDE, facilitating quick application development and prototyping.
   • Rich ecosystem of libraries and middleware supports various application needs, enhancing productivity.
8. Package Options:
   • Available in a variety of package options, including LQFP and BGA, accommodating different design requirements and space constraints.

Applications:

The STM32F103VCT6 microcontroller is widely used in various applications such as:

• Industrial automation and control systems
• Consumer electronics, including home appliances
• Medical devices and health monitoring systems
• Automotive applications like body control modules and diagnostics
• Robotics and automation projects

In summary, the STM32F103VCT6 is a highly capable microcontroller that combines performance, efficiency, and versatility, making it an excellent choice for a broad spectrum of embedded applications.
