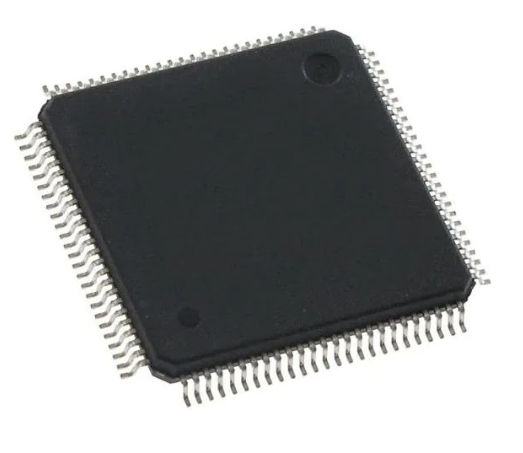

STM32F103VCT6
Manufacturer Part Number: STM32F103VCT6 | Manufacturer / Brand: ST |
Part of Description: ARM Microcontrollers - MCU 32BIT Cortex M3 256kB Flash 100pin | Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | ST |
Details | RoHS |
Mounting Style | SMD/SMT |
Package / Case | LQFP-100 |
Minimum Operating Temperature | – 40 C |
Transistor Polarity | +85 C |
Packaging | Tray |
Interface Type | CAN, I2C, SPI, USART, USB |
Program Memory Type | Flash |
Factory Pack Quantity | 540 |
Subcategory | Microcontrollers – MCU |
Voltage Gain dB | 100 dB |
Width | 14 mm |
Unit Weight | 0.046530 oz |
Get in touch with us now
The STM32F103VCT6 microcontroller is part of STMicroelectronics’ STM32 family, featuring a high-performance ARM Cortex-M3 core. This versatile microcontroller is designed for a wide array of applications requiring efficient processing and robust functionality.
Key Features:
- Core and Performance:
- Architecture: Based on the ARM Cortex-M3 core.
- Clock Speed: Operates at speeds up to 72 MHz, providing ample processing power for complex applications.
- Architecture: 32-bit RISC architecture, which enhances performance while maintaining low power consumption.
- Memory:
- Flash Memory: Equipped with 512 KB of Flash memory, allowing for the storage of application code and data.
- SRAM: Features 64 KB of SRAM for efficient data handling during runtime.
- Peripheral Interfaces:
- Analog Interfaces: Includes a 12-bit Analog-to-Digital Converter (ADC) with up to 16 channels, enabling precise sensor data acquisition.
- Digital Interfaces: Supports multiple digital interfaces, including:
- USART: Up to 3 UARTs for serial communication.
- SPI: Up to 3 SPI interfaces for high-speed data transfer.
- I2C: Two I2C interfaces for communication with various peripherals.
- Timers: Multiple general-purpose timers, including PWM functionality for motor control and other applications.
- Power Management:
- The STM32F103VCT6 offers several low-power modes, enabling efficient energy usage and extending battery life in portable applications.
- Development and Compatibility:
- The microcontroller is compatible with the STM32Cube ecosystem, which provides comprehensive software development support, including HAL libraries and middleware for various applications.
- It is available in a LQFP64 package, allowing for easy integration into various designs.
- Applications:
- Suitable for various applications, including:
- Consumer Electronics: Home automation devices, remote controls, and smart appliances.
- Industrial Automation: Sensor interfaces, motor control, and data acquisition systems.
- Medical Devices: Patient monitoring systems and portable medical equipment.
- Suitable for various applications, including:
Summary:
The STM32F103VCT6 is a robust microcontroller that balances performance, power efficiency, and versatility. Its extensive memory and peripheral options make it an ideal choice for developers seeking to create innovative applications in diverse fields. With its combination of high-speed processing, advanced communication capabilities, and support for a wide range of peripherals, the STM32F103VCT6 is well-suited for both beginner and advanced embedded systems projects.
