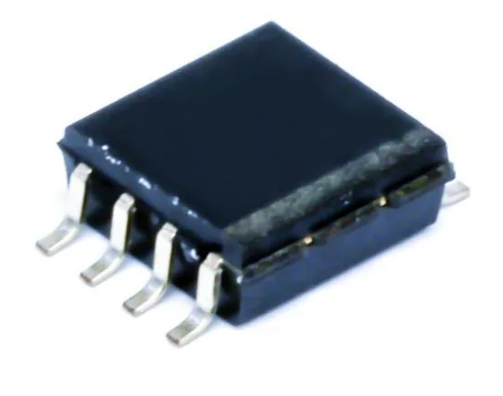

SN74LVC2G74DCTR

The SN74LVC2G74DCTR is a dual D-type flip-flop designed for low-voltage applications. Operating within a supply voltage range of 1.65V to 5.5V, this device features an asynchronous set (PRE) and reset (CLR) function, making it ideal for use in timing circuits, data storage, and state management applications.

Each flip-flop has a D (data) input, a clock input (CLK), an asynchronous set input (PRE), and an asynchronous reset input (CLR). The output (Q) reflects the state of the D input at the moment of a rising edge on the CLK input, while the PRE and CLR inputs can be activated independently to set or reset the output.

The SN74LVC2G74DCTR is characterized by low power consumption and high-speed operation, with propagation delays of only a few nanoseconds. Its robust design allows it to interface easily with other TTL or CMOS components. This flip-flop is available in a small 6-pin SOT-23 package, making it suitable for space-constrained designs in consumer electronics, telecommunications, and industrial automation applications.

Key Features:

• Dual D-type flip-flop functionality
• Low voltage operation: 1.65V to 5.5V
• Asynchronous set and reset capabilities
• High-speed performance with minimal propagation delays
• Small SOT-23 package for compact design applications

This versatile device is well-suited for various digital logic applications, providing reliable performance in a small form factor.
