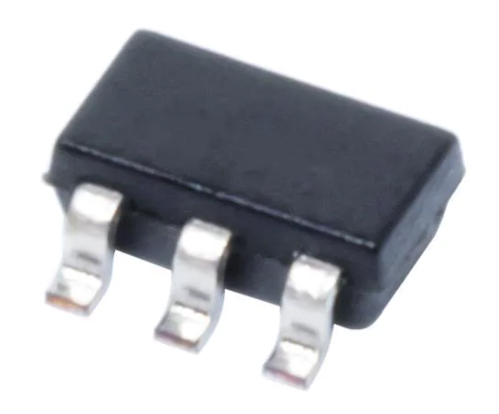

SN74LVC1G3157DBVR
Manufacturer Part Number: SN74LVC1G3157DBVR | Manufacturer / Brand: TI |
Part of Description: Analog Switch ICs SPDT Analog Switch | Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | TI |
Details | RoHS |
Mounting Style | SMD/SMT |
Package / Case | SOT-23-6 |
Minimum Operating Temperature | – 40 C |
Maximum Operating Temperature | +125 C |
Packaging | Reel |
Moisture Sensitive | Yes |
Product Type | Analog Switch ICs |
Factory Pack Quantity | 3000 |
Subcategory | Switch ICs |
Switch Continuous Current | 100 mA |
Width | 1.6 mm |
Unit Weight | 0.000229 oz |
Get in touch with us now
The SN74LVC1G3157DBVR is a Single-Pole, Double-Throw (SPDT) analog switch designed for operation within a voltage range of 1.65V to 5.5V. Manufactured by Texas Instruments (TI), this device is a high-performance, low-voltage, and low-power CMOS analog switch that can handle both analog and digital signals. It allows signals with amplitudes up to the supply voltage (VCC, peak) to be transmitted in either direction.
The SN74LVC1G3157DBVR features a low on-state resistance of 15 ohms, making it suitable for applications requiring minimal signal loss. It is packaged in a compact SOT-23, 6-pin package, which is ideal for space-constrained applications. The device also offers excellent electrical performance, including low leakage currents and high isolation between the switched channels.
Applications for the SN74LVC1G3157DBVR include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems. It is well-suited for use in a variety of electronic devices, including communication systems, data processors, and test equipment.
Overall, the SN74LVC1G3157DBVR provides a reliable and efficient solution for analog switching in a wide range of applications, thanks to its high performance, low power consumption, and compact packaging.
