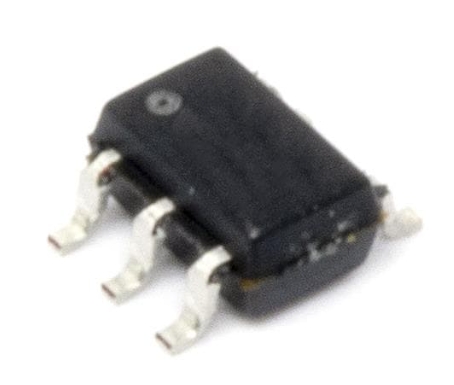

SN74LVC1G17DCKR

Manufacturer Part Number: SN74LVC1G17DCKR Manufacturer / Brand: TI
Part of Description: Buffers & Line Drivers Single Schmitt-Trgr Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseSC70-5
High Level Output Current– 32 mA
Low Level Output Current32 mA
PackagingReel
Minimum Operating Temperature– 25 C
Maximum Operating Temperature+ 125 C
Factory Pack Quantity100
SubcategoryLogic ICs
Width1.25 mm
Unit Weight0.001164 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The SN74LVC1G17DCKR is a single buffer/driver from Texas Instruments with the following key features and application description:

    SN74LVC1G17DCKR Description

    Model: SN74LVC1G17DCKR
    Type: Single Buffer/Driver
    Logic Type: Non-inverting Buffer
    Operating Voltage Range: 1.65V to 5.5V
    Logic Family: LVC (Low Voltage CMOS)
    Output Type: Open Drain
    Maximum Output Current: ±32mA
    Propagation Delay: 2.3 ns (typical at 3.3V)
    Package Type: SOT-353 (DCK package)
    Number of Pins: 5
    Operating Temperature Range: -40°C to +125°C

    Features:

    • High Noise Immunity: This device features Schmitt-trigger inputs that ensure stable output signals even in the presence of noisy input signals.
    • Wide Voltage Range: Supports a wide operating voltage range from 1.65V to 5.5V, suitable for various power environments.
    • High Drive Capability: This device has strong output drive capability, supporting larger output currents.
    • Low Power Consumption: Manufactured with advanced CMOS technology, offering low static and dynamic power consumption.
    • High-Speed Operation: Equipped with very fast propagation delay times, making it suitable for high-speed digital circuits.

    Application Scenarios: The SN74LVC1G17DCKR is widely used in digital circuits requiring signal buffering and driving, especially in situations where noise immunity and high-speed operation are needed, such as communication devices, industrial control systems, consumer electronics, automotive electronics, and portable devices.
