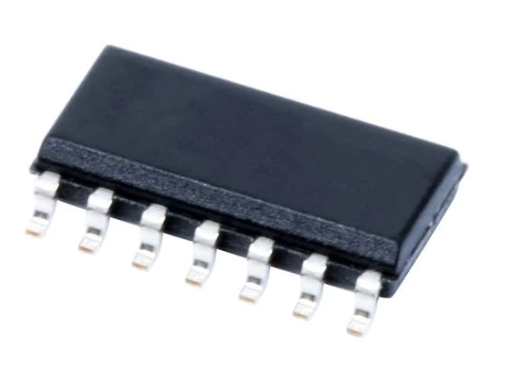

SN74HC21DR

Manufacturer Part Number: SN74HC21DR Manufacturer / Brand: TI
Part of Description: Logic Gates Dual 4-input Positive-AND Gates Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseSOIC-14
Number of Output Lines2 Output
Low Level Output Current5.2 mA
PackagingReel
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
Factory Pack Quantity2500
SubcategoryLogic ICs
Width3.91 mm
Unit Weight0.004564 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The SN74HC21DR is a high-speed CMOS dual 4-input AND gate from Texas Instruments, designed for general-purpose logic applications. It features low power consumption and high noise immunity, making it suitable for a wide range of digital logic systems.

    Key Features:

    • Dual 4-Input AND Gates: Consists of two independent 4-input AND gates, allowing multiple logic operations in one package.
    • High-Speed CMOS Technology: Provides fast switching speeds with typical propagation delays in the nanosecond range, making it ideal for high-performance digital circuits.
    • Low Power Consumption: Designed with CMOS technology, ensuring minimal power usage, especially in battery-operated and energy-efficient systems.
    • Wide Operating Voltage Range: Supports an operating voltage range of 2V to 6V, offering flexibility for various power supply configurations.
    • Standard TTL-Compatible Inputs: Inputs are compatible with standard TTL voltage levels, allowing easy integration into mixed-logic designs.
    • High Noise Immunity: Delivers strong noise immunity, ensuring stable operation even in electrically noisy environments.
    • Compact SOIC-14 Package: Housed in a 14-pin SOIC package, making it suitable for space-constrained designs.

    Typical Applications:

    • Logic Gate Expansion: Used to expand logic functions in digital systems, allowing multiple conditions to be combined in control circuits.
    • Signal Processing: Employed in signal processing systems that require multiple input conditions to be ANDed together.
    • Embedded Systems: Suitable for microcontroller-based designs that require efficient logic operations with minimal power consumption.
    • Automation and Control: Applied in automation and control systems where fast, reliable digital logic processing is needed.

    The SN74HC21DR is valued for its high-speed operation, low power consumption, and reliability, making it an excellent choice for a variety of digital logic applications.
