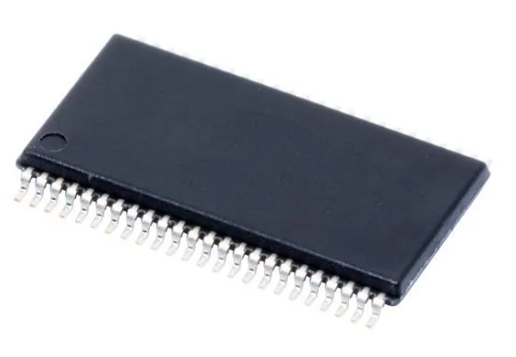

SN74AVC16T245DGGR

Manufacturer Part Number: SN74AVC16T245DGGR Manufacturer / Brand: TI
Part of Description: Translation - Voltage Levels 16-Bit Dual Supply Bus Transceiver Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseTSSOP-48
Supply Voltage – Max3.6 V
Supply Voltage – Min1.2 V
PackagingReel
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
Factory Pack Quantity2000
SubcategoryLogic ICs
Output Type3-State
Unit Weight0.007873 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The SN74AVC16T245DGGR is a 16-bit bidirectional voltage-level translator and buffer from Texas Instruments, designed to facilitate data transfer between different voltage domains. It is particularly useful for interfacing between devices operating at different logic levels, providing reliable and high-speed data transfer. Here are the key features and specifications:

    1. Function:
      • Voltage-Level Translator: Allows bidirectional data transfer between two different voltage levels, supporting various logic voltage levels (e.g., 1.2V to 3.6V).
    2. Data Lines:
      • 16 Bits: Provides 16 bidirectional data lines, enabling the transfer of 16-bit data simultaneously.
    3. Operating Voltage:
      • Supply Voltage: Supports a wide range of operating voltages:
        • VCC (A Side): 1.2V to 3.6V
        • VCC (B Side): 1.65V to 5.5V
    4. Performance:
      • Speed: Designed for high-speed operation, with a maximum data rate of up to 100 MHz, making it suitable for high-performance applications.
    5. Package:
      • Package Type: Available in a 48-pin TQFP (Thin Quad Flat Package), which is compact and suitable for modern, high-density PCB designs.
    6. Features:
      • Bus Hold: Includes bus hold circuitry to eliminate the need for external pull-up or pull-down resistors, ensuring data stability.
      • Low Power Consumption: Designed to operate with low power consumption, making it suitable for battery-operated and power-sensitive applications.
      • Low Input and Output Capacitance: Provides minimal signal degradation and fast switching times.
    7. Applications:
      • Interface Conversion: Ideal for interfacing between devices with different logic levels in systems such as microcontrollers, FPGAs, and memory devices.
      • High-Speed Data Transfer: Suitable for applications requiring high-speed data transfer between different voltage domains.
    8. Reliability:
      • Robust Operation: Ensures reliable operation with high noise immunity and robust data handling capabilities.

    The SN74AVC16T245DGGR is a versatile and high-performance voltage-level translator and buffer that facilitates seamless data transfer between different voltage levels in complex electronic systems, ensuring reliable and efficient communication.
