S9S08SG8E2MTJR

The S9S08SG8E2MTJR is an 8-bit microcontroller from NXP Semiconductors, part of the HCS08 family, designed for cost-effective, low-power embedded applications. Here are its key features:

1. 8-bit HCS08 Core: Operates at speeds up to 20 MHz, delivering reliable performance for general-purpose control tasks.
2. Memory:
   • Flash Memory: 8 KB of on-chip flash memory for program storage, supporting in-application reprogramming.
   • RAM: 512 bytes of on-chip RAM for data storage and efficient operation.
3. Integrated Peripherals:
   • Analog-to-Digital Converter (ADC): A 10-bit ADC with multiple input channels for precise analog signal measurement.
   • Timer Modules: Multiple timers including an 8-bit modulo timer and a 16-bit timer, useful for generating PWM signals and managing timed events.
   • Serial Interfaces: Supports serial communication via an I²C and a Serial Communication Interface (SCI), enhancing its connectivity options.
4. Low Power Consumption: Designed for energy-efficient applications, with various low-power operating modes such as stop and wait modes to extend battery life.
5. Operating Voltage: Operates over a wide voltage range, typically between 2.7V and 5.5V, offering flexibility for various power supply designs.
6. Applications: Suitable for consumer electronics, home appliances, industrial control systems, and other applications that require low-cost, low-power microcontrollers with integrated peripherals.

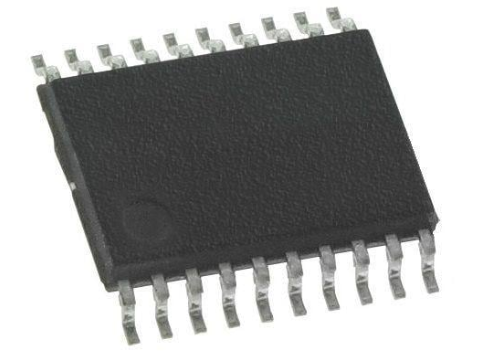

7. Package: Offered in a compact TSSOP (Thin Shrink Small Outline Package), ideal for space-constrained designs.

The S9S08SG8E2MTJR is a versatile, cost-effective microcontroller that balances power efficiency with functionality, making it well-suited for a range of embedded applications.
