S912XET256W1MAA

The S912XET256W1MAA is a 16-bit microcontroller from NXP Semiconductors, part of the S12X family, designed for automotive and industrial applications. It is optimized for high performance, versatility, and low power consumption. Here are its key features:

1. 16-bit S12X Core:
   • Operates at clock speeds up to 40 MHz, providing efficient processing capabilities for real-time applications.
   • The architecture supports efficient data handling and control operations.
2. Memory:
   • Flash Memory: 256 KB of on-chip flash memory for program storage, allowing for in-system programming and reprogramming capabilities.
   • RAM: 16 KB of SRAM for data storage, ensuring sufficient space for application variables and data processing.
3. Integrated Peripherals:
   • Analog-to-Digital Converter (ADC): Features a 10-bit ADC for precise analog signal measurements, ideal for sensor interfacing.
   • Timers: Multiple timers for generating PWM signals and managing timed events, enhancing control functionality in applications.
   • Communication Interfaces: Supports several communication protocols, including CAN, I²C, and SPI, allowing for flexible integration with other systems and devices.
4. Low Power Consumption:
   • Designed with various low-power modes to extend battery life in portable applications, making it suitable for energy-sensitive designs.
5. Operating Voltage:
   • Typically operates within a voltage range of 3.3V to 5.5V, providing flexibility for different power supply configurations.
6. Safety and Reliability:
   • Incorporates safety features such as a watchdog timer and error detection mechanisms, ensuring reliable operation in safety-critical environments.
7. Applications:
   • Commonly used in automotive applications (body control, engine management), industrial automation, and other embedded systems requiring robust control and processing capabilities.
8. Package:

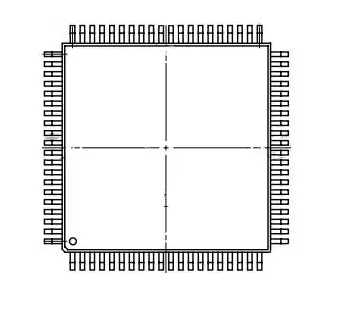

   • Available in a compact LQFP (Low-Profile Quad Flat Package), suitable for designs with space constraints.

The S912XET256W1MAA microcontroller combines performance, integrated features, and low power consumption, making it an excellent choice for a wide range of embedded applications in automotive and industrial sectors.
