REF195GRUZ-REEL7

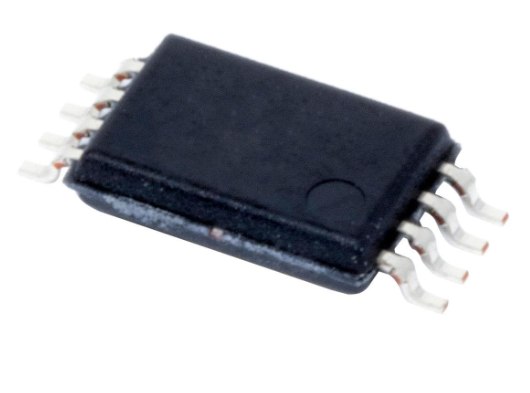

The REF195GRUZ-REEL7 is a precision, low-power, low-dropout voltage reference IC manufactured by Analog Devices Inc. (ADI), also known as AD. It features a TSSOP-8 package, which is a small, surface-mount technology package that is widely used in electronic devices due to its compact size and high reliability.

This voltage reference IC provides a stable output voltage of 5V, with high initial accuracy and a very low temperature coefficient. It is designed to operate from supplies as low as 100mV above the output voltage and consumes less than 45μA of supply current in normal operation. Additionally, it offers sleep mode functionality, which can be enabled by applying a low TTL or CMOS level to the SLEEP pin. In sleep mode, the output is turned off, and the supply current is further reduced to less than 15μA, making it ideal for power-sensitive applications.

The REF195GRUZ-REEL7 is specified over an extended industrial temperature range of -40°C to +85°C, with typical performance specifications over -40°C to +125°C for automotive and other demanding applications. It is suitable for use in a wide range of electronic systems, including portable instruments, ADCs and DACs, smart sensors, solar-powered applications, and loop-current-powered instruments.

Overall, the REF195GRUZ-REEL7 is a high-performance, low-power voltage reference IC that offers excellent stability, accuracy, and temperature performance. Its compact package and sleep mode functionality make it an ideal choice for use in space-constrained and power-sensitive applications.
