QSB34CGR

The QSB34CGR is a high-performance N-channel MOSFET designed for use in various power applications. Here are its key features and specifications:

1. Voltage and Current Ratings:
   • Maximum Drain-Source Voltage (Vds): 30V, making it suitable for low-voltage applications.
   • Continuous Drain Current (Id): 34A, allowing for significant current handling in power circuits.
2. Low On-Resistance:
   • The QSB34CGR features a low on-resistance (Rds(on)) of approximately 10mΩ at a gate-source voltage (Vgs) of 10V, which minimizes power losses during operation and improves overall efficiency.
3. Gate Threshold Voltage:
   • The gate threshold voltage (Vgs(th)) is typically between 1.0V and 2.5V, enabling compatibility with low-voltage control signals, making it easy to drive in various applications.
4. Fast Switching Performance:
   • Designed for rapid switching applications, the QSB34CGR provides fast turn-on and turn-off characteristics, making it ideal for use in high-frequency circuits, such as DC-DC converters and switching power supplies.
5. Applications:
   • Commonly used in power management, battery management systems, motor drivers, and other high-efficiency applications where reliable performance is required.
6. Package Type:

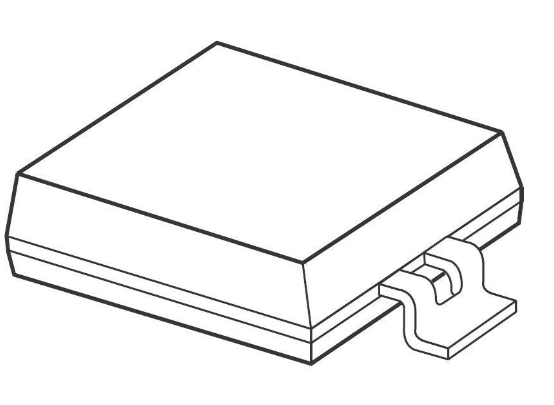

   • The QSB34CGR is typically available in a compact surface-mount package, which facilitates easy PCB integration and effective thermal dissipation.

Overall, the QSB34CGR is a versatile N-channel MOSFET that delivers excellent performance in a wide range of power applications, providing reliability and efficiency in electronic circuit designs.
