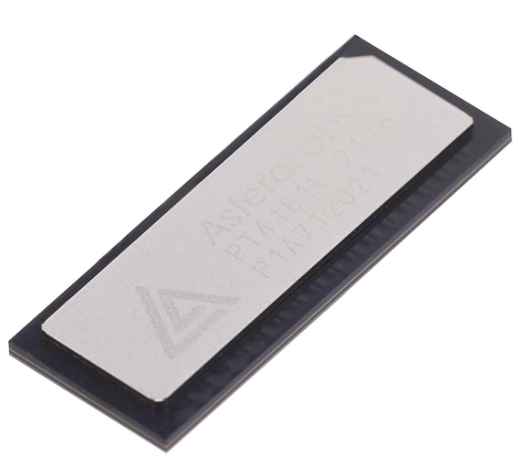

PT4161LRS

Manufacturer Part Number: PT4161LRS Manufacturer / Brand: Astera
Part of Description: Interface - Signal Buffers, Repeaters PCI-EXPRESS GEN-4 X16 RETIMER Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerAstera
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseFC-CSP-354
PackagingTray
Product TypeSignal Buffers, Repeaters
SeriesARIES
Factory Pack Quantity240
SubcategoryInterface ICs
TradenameASTERA LABS
TypePCI-Express 4.0
Unit Weight0.043987 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The PT4161LRS is a state-of-the-art PCI Express Gen-4 x16 Smart Retimer developed by Astera Labs. It seamlessly integrates between a Root Complex and End Points, extending the reach by over 28dB at a speed of 16GT/s. This compact and efficient device offers superior signal integrity performance with minimal support circuitry and integrated AC coupling capacitors, reducing the solution size while enhancing performance.

    The PT4161LRS boasts receiver and transmitter performance that exceeds PCI Express base specification requirements, and it does not require system software. It is designed with an optimized BGA package for board routing and features an integrated AC coupling capacitor that improves signal integrity. Additionally, it supports hot-plugging, lane-edge timing and voltage adjustments at the receive end, SRIS, SRNS, and common clock systems.

    The PT4161LRS also offers advanced features such as loopback support, system and lane reversal with automatic polarity correction, and low power consumption using advanced CMOS technology. It includes an HCSL reference clock output that eliminates the need for clock buffers to drive downstream PCIe devices.

    Furthermore, the PT4161LRS is equipped with full-featured C and Python SDKs for rapid integration of advanced diagnostic features, and it can be configured via SMBus or EEPROM. It also supports AC-JTAG boundary scanning and is pin- and register-compatible with other retimers, making it easy to scale performance to PCI Express Gen-5.

    Overall, the PT4161LRS is an ideal solution for server and high-performance PC motherboard applications, PCIe Riser cards and add-in cards, server-to-server connectivity interfaces, NVMe JBOFs, and GPU/deep learning accelerators. Its superior performance, compact design, and advanced features make it a standout choice for designers looking to optimize their PCIe-based systems.
