PIC18F45K80-I/PT

The PIC18F45K80-I/PT is a high-performance 8-bit microcontroller (MCU) manufactured by Microchip Technology. This compact and versatile device is designed to meet the needs of a wide range of applications, including industrial control, automation, power management, and automotive systems.

Key Features and Specifications

1. Architecture and Performance:

   • The PIC18F45K80-I/PT is based on a RISC (Reduced Instruction Set Computer) CPU architecture, providing fast instruction execution and efficient power management.
   • It operates at a maximum frequency of 64 MHz, enabling high-speed processing and quick response to external inputs.

2. Memory and Storage:

   • The device features 32 KB of Flash program memory, which is sufficient for storing complex application code.
   • It also includes 1.024 KB (or 1 KB) of SRAM (Static Random-Access Memory) for data storage and processing.

3. Analog and Digital Peripherals:

   • The PIC18F45K80-I/PT integrates an 11-channel, 12-bit Analog-to-Digital Converter (ADC), which allows for precise analog signal measurement and conversion.
   • It includes multiple PWM (Pulse Width Modulation) modules for generating precise analog output signals, ideal for motor control and other applications requiring analog signal modulation.
   • There are also multiple timers, counters, and capture/compare modules for precise timing and event detection.

4. Communication Interfaces:

   • The PIC18F45K80-I/PT supports a variety of communication protocols, including CAN (Controller Area Network), I2C (Inter-Integrated Circuit), SPI (Serial Peripheral Interface), and USART (Universal Synchronous/Asynchronous Receiver/Transmitter).
   • These interfaces enable seamless communication with other devices and systems, facilitating data exchange and control.

5. Power Management:

   • The device features low-power modes, such as sleep and standby, to extend battery life in applications where power conservation is critical.
   • It operates within a wide voltage range of 1.8V to 5.5V, making it suitable for use in various environments and power supplies.

6. Package and Pin Configuration:

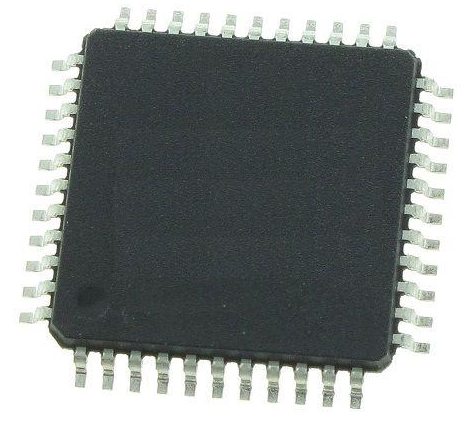

   • The PIC18F45K80-I/PT is available in a 44-pin TQFP (Thin Quad Flat Package) package, which is compact and easy to mount on circuit boards.
   • It provides a rich set of I/O (Input/Output) pins for connecting external devices and sensors.

Applications

The PIC18F45K80-I/PT is suitable for a wide range of applications, including:

• Industrial automation and process control systems.
• Power management solutions for various devices and systems.
• Automotive systems and components requiring precise control and monitoring.
• Consumer electronics, such as home appliances and smart devices.
• Medical equipment and healthcare systems requiring reliable and efficient control.

Summary

The PIC18F45K80-I/PT is a versatile and high-performance 8-bit microcontroller that offers a wide range of features and capabilities. Its compact size, low power consumption, and rich set of peripherals make it an excellent choice for a variety of applications. With its robust architecture and efficient processing capabilities, the PIC18F45K80-I/PT is well-suited for developing sophisticated and reliable embedded systems.
