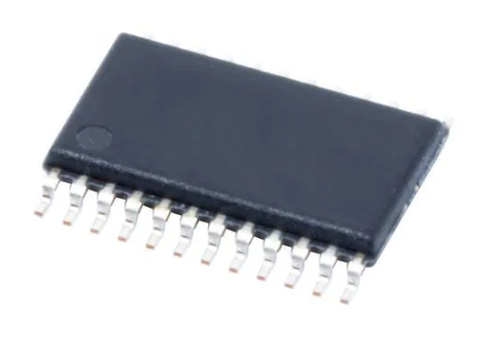

PCA9555PW

Manufacturer Part Number: PCA9555PW Manufacturer / Brand: TI
Part of Description: Interface - I/O Expanders Remote 16-Bit I2C & SMBus I/O Expander Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseTSSOP-24
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingTube
Moisture SensitiveYes
Operating Supply Voltage2.3 V to 5.5 V
Factory Pack Quantity60
SubcategoryInterface ICs
Product Type8-bit Microcontrollers – MCU
TypeI/O Expander
Unit Weight0.003284 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The PCA9555PW is a high-performance, low-power 16-bit parallel input/output (GPIO) expander designed for I²C bus/SMBus applications. Manufactured by NXP Semiconductors, this device is intended to enhance the I²C bus I/O expander series by offering higher drive capability, 5V I/O tolerance, lower power current, independent I/O configuration, and a smaller package.

    Key Features and Specifications:

    • 16-Bit GPIO Expander: The PCA9555PW provides 16 GPIO channels, each of which can be individually configured as input or output.
    • I²C and SMBus Interface: The device communicates with the host controller via the I²C or SMBus interface, supporting clock frequencies up to 400 kHz.
    • Wide Operating Voltage Range: The PCA9555PW operates within a voltage range of 2.3V to 5.5V, making it suitable for a variety of applications.
    • Interrupt Capability: The device includes an interrupt output, which can be used to notify the host controller when an input state changes.
    • Configurable I/O Ports: The PCA9555PW allows for flexible configuration of its I/O ports, including input, output, and polarity inversion (active-high or active-low operation).
    • High Drive Capability: With a maximum output current of 50 mA, the PCA9555PW can directly drive external devices such as LEDs.
    • Small Package Size: The PCA9555PW is packaged in a 24-pin TSSOP (Thin Small Outline Package), which is ideal for space-constrained applications.
    • CMOS Logic: The device uses CMOS logic, ensuring low power consumption and high reliability.
    • Compatibility: The PCA9555PW is compatible with most microcontrollers and can tolerate 5V on its I/O ports.

    Applications:

    The PCA9555PW is ideal for a wide range of applications that require additional I/O ports, including:

    • Industrial automation and control systems
    • Home automation and security systems
    • Embedded systems and microcontroller-based projects
    • Telecommunications equipment
    • Any other systems that require reliable and flexible I/O expansion.

    In summary, the PCA9555PW is a versatile and reliable 16-bit GPIO expander that offers high performance, low power consumption, and flexible configuration options. Its small package size and wide operating voltage range make it suitable for a variety of applications, making it an excellent choice for engineers looking to expand their system’s I/O capabilities.
