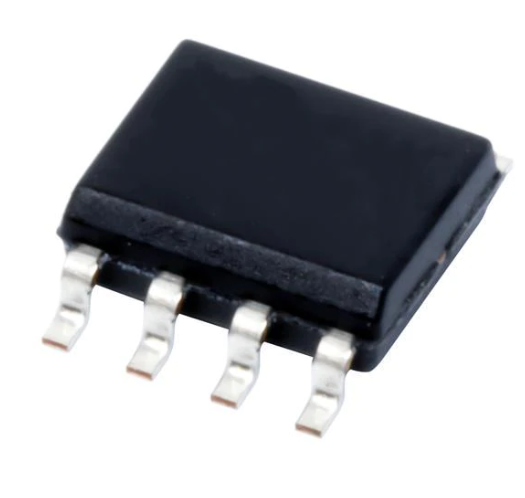

OPA2197IDR

Manufacturer Part Number: OPA2197IDR Manufacturer / Brand: TI
Part of Description: Precision Amplifiers Dual 36-V, precision, rail-to-rail input output, low offset voltage op amp 8-SOIC -40 to 125 Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOIC-8
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+125 C
PackagingReel
Moisture SensitiveYes
Product TypePrecision Amplifiers
Factory Pack Quantity2500
SubcategoryAmplifier ICs
THD plus Noise0.00008 %
Voltage Gain dB134 dB
Unit Weight0.002984 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The OPA2197IDR is a new generation of 36V operational amplifiers, offered by Texas Instruments (TI). It is a dual-channel, precision, rail-to-rail input/output, low-offset voltage operational amplifier. This device features a wide supply voltage range of 4.5V to 36V, making it suitable for a variety of applications. The OPA2197IDR boasts low offset voltage (0.1mV max at 25°C) and low offset drift (0.5µV/°C typ), ensuring high accuracy in signal amplification.

    With its rail-to-rail input and output capabilities, the OPA2197IDR can handle signals close to the power supply rails, maximizing the dynamic range of the amplifier. Additionally, it offers high bandwidth (10MHz typ) and fast slew rate (20V/µs typ), making it suitable for high-speed applications. The OPA2197IDR also features low input bias current (20pA max), low noise (5.5nV√Hz typ at 1kHz), and high common-mode rejection ratio (140dB typ), further enhancing its performance in demanding applications.

    The OPA2197IDR is packaged in a compact footprint, making it ideal for space-constrained designs. It is EMI hardened and offers high load drive capability, ensuring reliable operation in noisy environments. Overall, the OPA2197IDR is an excellent choice for precision analog applications requiring high accuracy, low noise, and high-speed performance.

    This description highlights the key features and benefits of the OPA2197IDR, making it suitable for use in datasheets, product listings, or other marketing materials.
