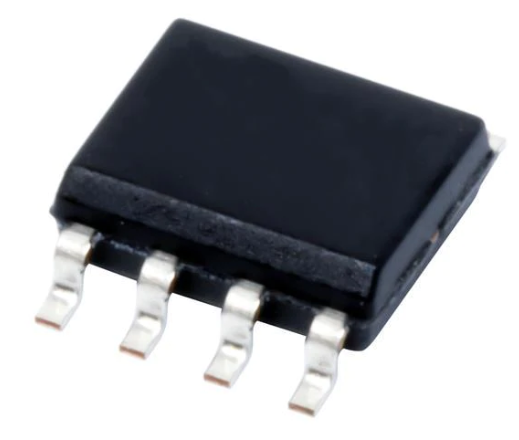

NE5532DR

Manufacturer Part Number: NE5532DR Manufacturer / Brand: IT
Part of Description: Operational Amplifiers - Op Amps Dual Low Noise Op Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOIC-8
Minimum Operating Temperature 0 C
Maximum Operating Temperature+70 C
PackagingReel
Moisture SensitiveYes
Height1.58 mm
Factory Pack Quantity2500
TechnologyBipolar
Voltage Gain dB100 dB
Width3.91 mm
Unit Weight0.002561 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The NE5532DR is a dual-channel, low-noise, high-speed operational amplifier from Texas Instruments (TI). It is designed for audio applications and features extremely low noise, high output drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, and a high slew rate. The NE5532DR comes in an industry-standard SOIC-8 package, making it easy to mount on surfaces and save board space.

    With a small-signal bandwidth of 10 MHz and a peak-to-peak output voltage swing of 26V (typical) with VCC± = ±15V and RL = 600Ω, the NE5532DR is capable of delivering excellent audio performance. It also has a high DC voltage gain of 100 V/mV (typical) and a common-mode rejection ratio of 100 dB (typical), ensuring accurate and noise-free signal amplification.

    The NE5532DR is internally compensated for unity-gain operation and features input protection diodes and output short-circuit protection, providing enhanced reliability and stability. It operates over a wide supply voltage range of 3.0V to 30V and is suitable for a variety of audio and general-purpose applications.

    In summary, the NE5532DR is a high-performance operational amplifier that combines low noise, high output drive capability, and excellent audio performance in a compact SOIC-8 package. Its versatility and reliability make it a popular choice for audio amplifiers, preamplifiers, and other audio-related circuits.
