N25Q128A13ESE40F

The N25Q128A13ESE40F is a high-performance NOR Flash memory device manufactured by Micron Technology. It is a non-volatile RAM that must be written and erased in blocks, with a limited number of write cycles, making it suitable for storing programs that are not frequently changed.

Key Features:

• Capacity and Organization: The N25Q128A13ESE40F offers a storage capacity of 128Mbit, organized as 256 main sectors of 64KB each, further divided into 4096 subsectors of 4KB.
• Multi-I/O Capability: The device supports dual and quad I/O instructions, enabling double or quadruple the transfer bandwidth for read and program operations compared to traditional single I/O Flash memories.
• Execute-in-Place (XIP) Functionality: The N25Q128A13ESE40F features XIP capability, allowing the memory to be executed directly from the Flash memory without the need to copy it to a separate RAM, thereby improving system performance.
• Advanced Write Protection: The memory can be write-protected by software through volatile and non-volatile protection features, ensuring data integrity and security. The protection granularity is 64KB for volatile protection.
• High-Speed SPI-Compatible Bus Interface: The device features a high-speed SPI-compatible bus interface with a maximum clock frequency of 108MHz, enabling fast data transfer rates.
• Long Data Retention: The N25Q128A13ESE40F offers a data retention period of over 20 years, ensuring reliable storage of critical data over extended periods.
• RoHS Compliance: The device is compliant with RoHS standards, ensuring that it meets environmental regulations related to hazardous substances.

Applications:

The N25Q128A13ESE40F is suitable for a wide range of applications, including but not limited to:

• Embedded systems
• Industrial control systems
• Telecommunications equipment
• Consumer electronics
• Any application requiring high-performance, reliable, and non-volatile storage.

Package and Dimensions:

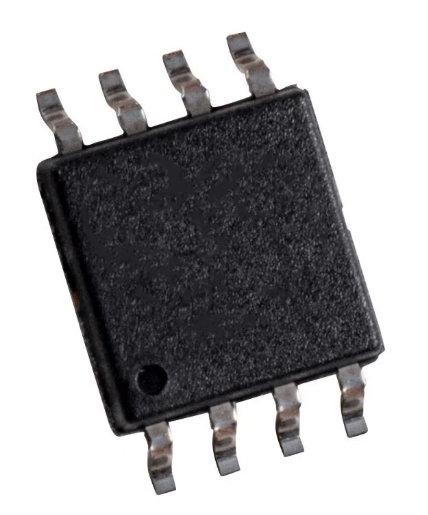

The N25Q128A13ESE40F is available in an SOIC-8 package, with dimensions of 5.49mm x 5.49mm x 1.91mm. It is a surface-mount device, making it easy to integrate into various electronic systems.

In summary, the N25Q128A13ESE40F is a versatile and high-performance NOR Flash memory device that offers a combination of advanced features and robust performance. Its multi-I/O capability, XIP functionality, and long data retention make it an ideal choice for a wide range of embedded and industrial applications.
