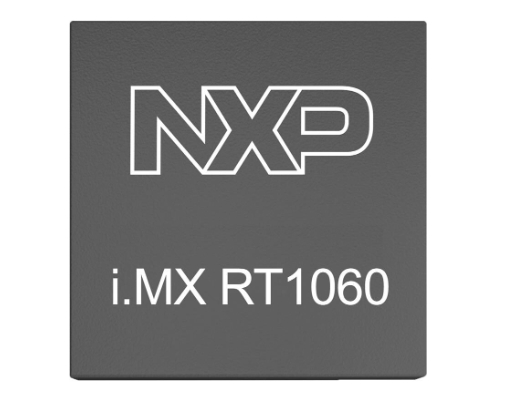

MIMXRT1062CVL5B

Manufacturer Part Number: MIMXRT1062CVL5B Manufacturer / Brand: NXP
Part of Description: ARM Microcontrollers - MCU i.MXRT1060, USB Fix Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerNXP
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseMAPBGA-196
CoreARM Cortex M7
Program Memory Size0 B
Data Bus Width32 bit
PackagingTray
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 105 C
Factory Pack Quantity240
SubcategoryMicrocontrollers – MCU
Watchdog TimersWatchdog Timer
Part # Aliases935394381557

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The MIMXRT1062CVL5B is a high-performance microcontroller from NXP Semiconductors, part of the i.MX RT series. It is designed for applications that require high processing power and advanced connectivity options. Here are the key features and specifications:

    1. Core:
      • ARM Cortex-M7: 32-bit processor core running at up to 600 MHz, providing high performance and efficient processing for demanding applications.
    2. Memory:
      • Flash Memory: 1 MB of internal Flash memory for program storage, supporting complex applications and firmware.
      • SRAM: 512 KB of SRAM for fast data access and manipulation.
    3. Peripherals:
      • Connectivity: Includes multiple connectivity options such as Ethernet, USB 2.0 (Host/Device/OTG), and CAN interfaces for robust communication.
      • Audio Interfaces: Integrated I²S (Inter-IC Sound) interface for audio applications.
      • Display Interfaces: Supports LCD display interfaces, including RGB and MIPI DSI (Display Serial Interface), for advanced graphical user interfaces.
      • Timers and PWM: Multiple general-purpose and advanced timers, as well as PWM (Pulse Width Modulation) channels for precise timing and control.
      • Analog Interfaces: Includes ADC (Analog-to-Digital Converter) and DAC (Digital-to-Analog Converter) for handling analog signals.
    4. Power Management:
      • Low Power Modes: Various low-power modes, including sleep and deep-sleep, to optimize power consumption in battery-operated designs.
      • Operating Voltage: Typically operates within a supply voltage range of 1.71V to 3.6V.
    5. Package:
      • Package Type: Available in a 144-pin LQFP (Low-profile Quad Flat Package), providing a compact and manageable footprint for integration into complex systems.
    6. Development and Debugging:
      • Debugging Interfaces: Supports standard debugging and programming interfaces including JTAG and SWD (Serial Wire Debug) for development and troubleshooting.
    7. Applications:
      • Industrial Control: Ideal for industrial automation and control systems requiring high processing power and connectivity.
      • Consumer Electronics: Suitable for advanced consumer electronics such as smart devices and interactive displays.
      • Automotive: Can be used in automotive applications requiring high performance and robust communication features.

    The MIMXRT1062CVL5B combines high-speed processing, extensive peripheral integration, and flexible connectivity options, making it a powerful choice for a wide range of demanding embedded applications.
