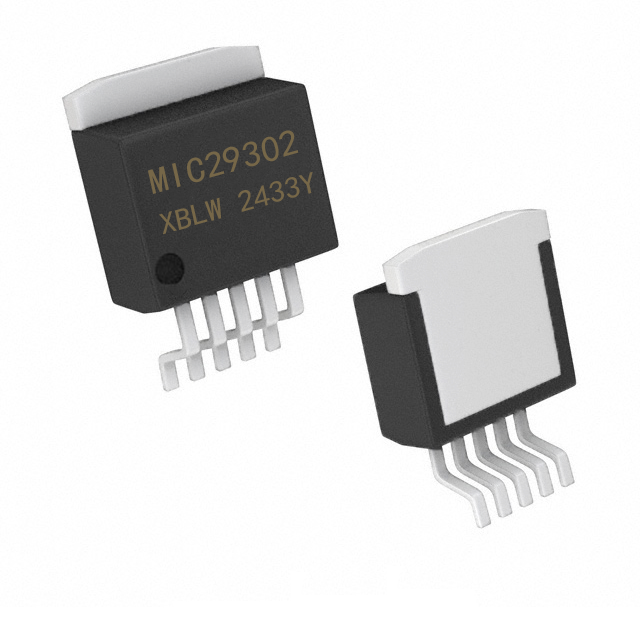

MIC29302DTR

Manufacturer Part Number: MIC29302DTR Manufacturer / Brand: XBLW
Part of Description: The MIC29302DTR is a high-current, high-accuracy, low-dropout voltage regulator designed for use in a wide range of electronic applications. Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerXBLW
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseTO-220-5L
Minimum Operating Temperature– 40 C
Transistor Polarity+85 C
PackagingTube
Moisture SensitiveYes
Factory Pack Quantity1000

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The MIC29302DTR is a high-performance, high-current, low-dropout (LDO) linear voltage regulator designed for use in a variety of electronic applications. It employs Micrel’s proprietary Super βeta PNP® process with a PNP pass element to achieve ultra-low dropout voltages and ground currents, ensuring stable and reliable voltage regulation even under heavy loads.

    This voltage regulator features a typical dropout voltage of 350mV to 425mV at full load, which is significantly lower than many other LDO regulators in its class. Additionally, it has a very low ground current, making it an excellent choice for high-current loads as well as for lower current, extremely low dropout-critical systems.

    The MIC29302DTR is fully protected against a range of fault conditions, including overcurrent, reversed input polarity, reversed lead insertion, overtemperature operation, and positive and negative transient voltage spikes. This comprehensive protection ensures the regulator’s reliability and robustness in diverse operating environments, minimizing the risk of damage or failure.

    In addition to its excellent electrical performance, the MIC29302DTR offers additional features that enhance its versatility and usability. It includes a logic-level ON/OFF control pin that allows users to remotely enable or disable the regulator, providing a convenient way to manage power consumption in electronic systems. Furthermore, an error flag pin signals whenever the output falls out of regulation, providing valuable feedback for monitoring and troubleshooting purposes.

    The MIC29302DTR is available in a TO-220-5 package, which is suitable for through-hole mounting and provides excellent thermal performance. It has a wide input voltage range of 2.25V to 26V and can provide an output voltage of 1.25V to 25V at a maximum output current of 3A. This makes it suitable for a wide range of power management applications, including battery-powered equipment, high-efficiency computer systems, automotive electronics, and high-efficiency linear lower supplies.

    Overall, the MIC29302DTR is a versatile, reliable, and high-performance LDO voltage regulator that offers a combination of low dropout voltage, low ground current, and comprehensive protection features. Its additional control and monitoring capabilities make it an ideal choice for a wide range of electronic applications, enabling engineers to design more efficient, reliable, and cost-effective power management solutions.
