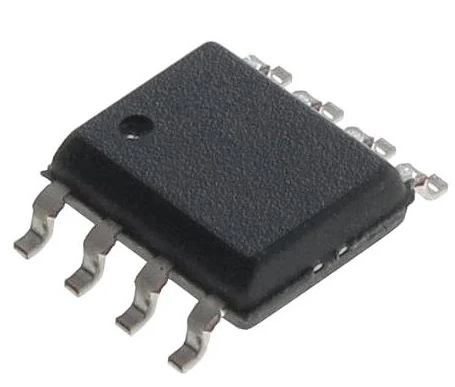

MCP6002T-I/SN

Manufacturer Part Number: MCP6002T-I/SN Manufacturer / Brand: Microchip
Part of Description: IMUs - Inertial Measurement Units 6 Axis IMU Motion Tracking Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerMicrochip
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOIC-8
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+125 C
PackagingReel
Moisture SensitiveYes
QualificationAEC-Q100
Factory Pack Quantity3300
SubcategoryAmplifier ICs
Voltage Gain dB112 dB
Width3.9 mm
Unit Weight0.019048 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The MCP6002T-I/SN is a high-performance operational amplifier (op-amp) manufactured by Microchip Technology. It is specifically designed for general-purpose applications and offers a combination of features that make it suitable for a wide range of electronic circuits.

    Key Features

    1. Dual-Channel Amplifier:

      • The MCP6002T-I/SN is a dual-channel op-amp, providing two independent amplifier circuits in a single package.
    2. Gain Bandwidth Product (GBWP):

      • The device has a gain bandwidth product of 1 MHz, allowing it to amplify signals with high frequencies while maintaining stability.
    3. Rail-to-Rail Input and Output:

      • The MCP6002T-I/SN supports rail-to-rail input and output swing, meaning it can amplify signals that are close to the power supply rails without significant distortion.
    4. Low Power Consumption:

      • The op-amp operates with a low power consumption, drawing only 100 µA (typical) of static current. This makes it suitable for battery-powered applications.
    5. Wide Power Supply Range:

      • The MCP6002T-I/SN can operate with a power supply voltage ranging from 1.8V to 5.5V (or even up to 6V according to some sources), providing flexibility in terms of power supply design.
    6. Phase Margin:

      • The device maintains a phase margin of 90° (typical), ensuring stability and reducing the risk of oscillation in the circuit.
    7. Temperature Range:

      • The MCP6002T-I/SN is designed to operate within an industrial temperature range of -40°C to +85°C, with an extended temperature range of -40°C to +125°C available for certain applications.
    8. Packaging:

      • The MCP6002T-I/SN is available in an SOIC-8 package, which is a surface-mount technology (SMT) package with 8 pins. This allows for easy integration into electronic circuits.
    9. CMOS Technology:

      • The op-amp is built using Microchip’s advanced CMOS process, which contributes to its low power consumption and high performance.

    Applications

    The MCP6002T-I/SN is suitable for a wide range of applications, including but not limited to:

    • Consumer electronics
    • Automotive systems
    • Portable devices
    • Photodiode amplifiers
    • Analog filters
    • Battery-powered systems

    In summary, the MCP6002T-I/SN is a versatile and high-performance operational amplifier that offers a combination of features such as dual-channel amplification, low power consumption, and a wide power supply range. Its compact packaging and advanced CMOS technology make it an ideal choice for various electronic circuits and applications.
