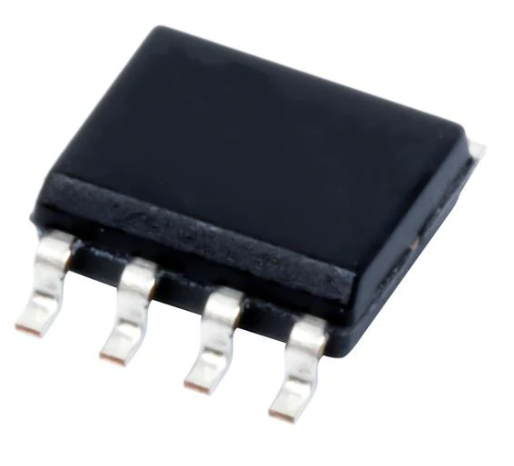

MC34063AD

The MC34063AD is a versatile and efficient DC-DC converter control circuit that offers a range of features suitable for various power management applications. It is a monolithic bipolar linear integrated circuit specifically designed for the control section of DC-to-DC converters.

Key Features:

1. Wide Input Voltage Range: The MC34063AD supports a wide input voltage range from 3.0V to 40V, making it suitable for use in various complex environments.
2. Adjustable Output Voltage: The output voltage can be adjusted from 1.25V to 40V, providing flexibility to match the specific needs of the application.
3. High Output Current: With a maximum output current of up to 1.5A, the MC34063AD can provide stable and reliable power support for electronic devices.
4. Efficient Energy Conversion: The converter adopts advanced buck-boost conversion technology, effectively reducing energy loss and improving energy utilization efficiency.
5. Temperature Compensation: The integrated temperature compensation bandgap reference ensures stable operation over a wide temperature range.
6. Short-Circuit Protection: The MC34063AD features short-circuit protection, which automatically limits the output current when a load short-circuit occurs, preventing circuit overload and damage.
7. Low Standby Current: The device has a low standby current, helping to save energy and extend battery life when not in use.
8. High Frequency Operation: With a wide operating frequency range from 100Hz to 100kHz, the MC34063AD allows for flexible configuration of the power system to achieve optimal power performance.

Applications:

The MC34063AD is suitable for a wide range of applications, including but not limited to:

• Remote and data communication equipment, where its stable power output and efficient energy conversion capabilities ensure reliable power supply.
• Industrial automation systems, where its wide input voltage range and adjustable output voltage make it ideal for powering various sensors and actuators.
• Smart home devices, where its high energy conversion efficiency and low power consumption characteristics contribute to energy savings and improved energy utilization.

In summary, the MC34063AD is a high-performance DC-DC converter control circuit that offers a combination of versatility, efficiency, and reliability. Its wide input voltage range, adjustable output voltage, high output current, and other features make it suitable for various power management applications.
