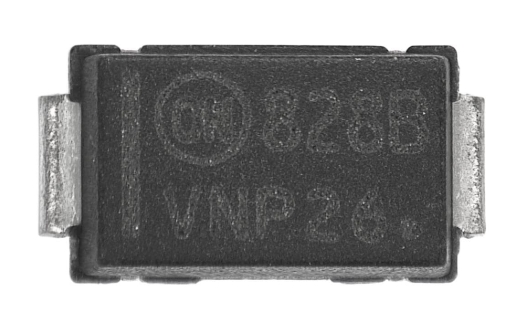

MBRA340T3G

Manufacturer Part Number: MBRA340T3G Manufacturer / Brand: ON
Part of Description: Schottky Diodes & Rectifiers 3A 40V Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerON
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSMA-2
Minimum Operating Temperature– 55 C
Maximum Operating Temperature+150 C
PackagingReel
Moisture SensitiveYes
Height2 mm
Factory Pack Quantity5000
SubcategoryDiodes & Rectifiers
TypeSchottky Diode
Width2.6 mm
Unit Weight0.004586 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The MBRA340T3G is a Schottky diode from ON Semiconductor, designed for surface mount applications. It features a maximum continuous forward current of 3A and a peak reverse repetitive voltage of 40V. The device is packaged in a DO-214AC (SMA)封装, which is a small, compact, and surface-mountable package with J-bent leads. The MBRA340T3G has an epitaxial structure with a highly stable oxide passivated junction and metal contacts.

    This Schottky power rectifier is suitable for low-voltage, high-frequency rectification, freewheeling, polarity protection, and applications with strict size and weight requirements. It offers a very low forward voltage drop, making it efficient in energy conversion. Additionally, the MBRA340T3G includes a guard ring for stress protection, ensuring long-term reliability and durability.

    The MBRA340T3G is commonly used in industrial, power management, automotive, consumer electronics, and portable devices. Its surface-mount technology allows for automated handling and assembly, making it an ideal choice for high-volume manufacturing.

    Overall, the MBRA340T3G is a high-performance Schottky diode that combines efficiency, reliability, and compact packaging, making it suitable for a wide range of applications.
