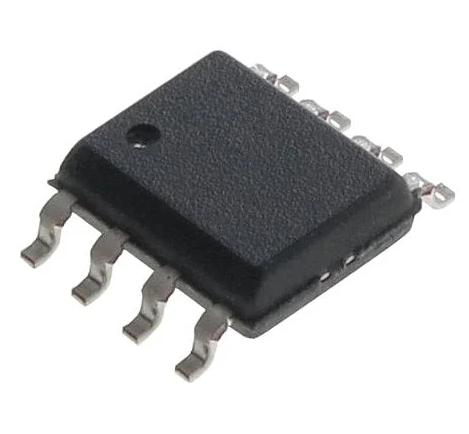

MAX3485ESA+

Manufacturer Part Number: MAX3485ESA+ Manufacturer / Brand: ADI
Part of Description: RS-422/RS-485 Interface IC 3.3V Powered, 10Mbps and Slew-Rate Limit Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerST
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSOIC-8
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingTube
Moisture SensitiveYes
Length5 mm
Factory Pack Quantity100
SubcategoryInterface ICs
Width4 mm
Part # AliasesMAX3485
Unit Weight0.019048 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The MAX3485ESA+ is a high-performance, low-power RS-485/RS-422 transceiver manufactured by Maxim Integrated (or referred to as Maxim). This transceiver is designed to meet the requirements of various communication standards and offers a range of features that make it suitable for use in a wide variety of applications.

    Key Features and Specifications:

    • Power Supply: Operates from a single 3.3V supply, providing a compact and efficient solution for power-sensitive applications.
    • Data Rate: Supports data rates up to 10Mbps, ensuring fast and reliable communication.
    • Half-Duplex Communication: Designed for half-duplex operation, allowing for efficient use of the communication bus.
    • Driver and Receiver Enable/Disable: Both the driver and receiver can be independently enabled or disabled, providing flexibility in communication control.
    • Fail-Safe Features: The receiver input has a fail-safe feature that guarantees a logic-high output if both inputs are open circuit, enhancing system reliability.
    • Short-Circuit Protection: The driver output includes short-circuit protection, preventing damage to the transceiver in the event of a fault.
    • Over-Temperature Protection: Incorporates over-temperature protection to prevent thermal damage and ensure long-term reliability.
    • Low-Power Shutdown Mode: Features a low-power shutdown mode to minimize power consumption when the transceiver is not in use.
    • Package: Available in an SOIC8_150MIL package, providing a compact and robust solution for integration into various systems.

    Applications:

    The MAX3485ESA+ is ideal for use in a wide range of applications, including industrial automation, building automation, security systems, and more. Its low-power consumption, high data rate, and robust features make it a reliable choice for communication systems requiring RS-485/RS-422 interfaces.

    Overall, the MAX3485ESA+ offers a combination of performance, reliability, and flexibility that makes it an excellent choice for various communication applications.
