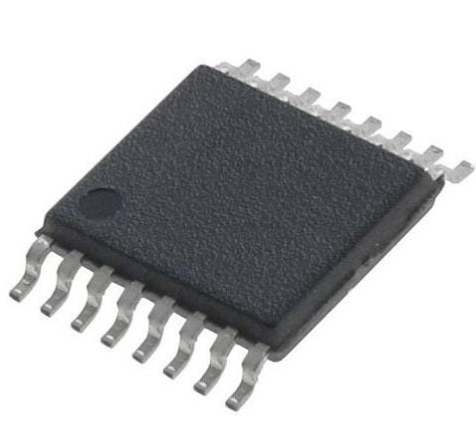

MAX3221CAE+
Manufacturer Part Number: MAX3221CAE+ | Manufacturer / Brand: ADI |
Part of Description: RS-232 Interface IC 1uA Supply-Current, True +3V to +5.5V RS | Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | ADI |
Details | RoHS |
Mounting Style | SMD/SMT |
Package / Case | SSOP-16 |
Minimum Operating Temperature | 0 C |
Transistor Polarity | +70 C |
Packaging | Tube |
Length | 6.33 mm |
Height | 1.78 mm |
Factory Pack Quantity | 76 |
Subcategory | Interface ICs |
Width | 5.38 mm |
Part # Aliases | MAX3221 |
Unit Weight | 0.004586 oz |
Get in touch with us now
The MAX3221CAE+ is a high-speed, RS-232-compatible transceiver designed for serial data communication applications. It operates from a single 5V power supply and can transmit data at speeds up to 1 Mbps while consuming low power. The device features a built-in charge pump that generates the required positive and negative voltage levels for RS-232 signal levels, enabling it to support up to 2 transceivers with a total of 4 drivers and 2 receivers.
With its robust design, the MAX3221CAE+ offers improved performance in noisy environments, making it ideal for use in various applications, including point-of-sale systems, industrial automation, and communication equipment. Additionally, it includes features such as over-voltage protection and a low-power shutdown mode, further enhancing its versatility and reliability.
