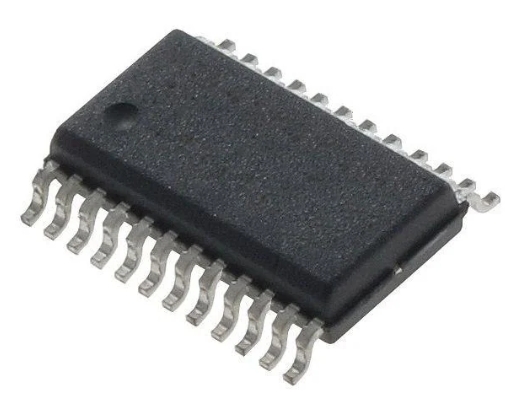

LTC3780IG

Manufacturer Part Number: LTC3780IG Manufacturer / Brand: ADI
Part of Description: Switching Voltage Regulators LTC3780 - High Efficiency, Synchronous, 4-Switch Buck-Boost Controller Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseSSOP-24
Input Voltage – Min4 V
Input Voltage – Max36 V
PackagingTube
Factory Pack Quantity96
SubcategoryPMIC – Power Management ICs
Product TypeSwitching Voltage Regulators

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The LTC3780IG is a high-performance, synchronous buck-boost DC/DC converter controller from Analog Devices. It can seamlessly regulate the output voltage, even when the input voltage is above, below, or equal to the output. This versatility makes it ideal for battery-powered applications or systems with widely varying input supplies. The LTC3780IG offers high efficiency (up to 98%) by utilizing synchronous rectification, and it supports output voltages ranging from 0.8V to 30V. Key features include current-mode control, programmable soft-start,LTC3780IG overcurrent protection, and excellent line/load transient response. It operates over a wide temperature range, making it suitable for industrial, automotive, and telecommunication applications.
