LT3493EDCB#TRMPBF

Manufacturer Part Number: LT3493EDCB#TRMPBF Manufacturer / Brand: ADI
Part of Description: Switching Voltage Regulators 1.2A, 750kHz Buck Sw Reg in 2 3 DFN Lead Free Status / RoHS Status: Digital to Analog Converters - DAC Dual, 16-Bit, 1230 MSPS, TxDAC+ Digital-to-Analog Converter
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerADI
DetailsRoHS
Mounting StyleSMD/SMT

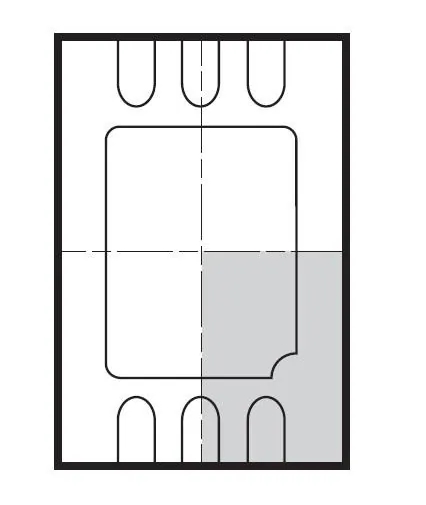

Package / CaseDFN-6
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingReel
Moisture SensitiveYes
Product TypeSwitching Voltage Regulators
Factory Pack Quantity500
SubcategoryPMIC – Power Management ICs
Supply Voltage – Min3.6 V
TypeDC/DC Converter
Unit Weight0.006128 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The LT3493EDCB#TRMPBF is a high-performance, current-mode PWM (Pulse Width Modulation) step-down DC/DC converter from Linear Technology (now part of Analog Devices Inc.). This device is designed to provide a robust and efficient power conversion solution for a wide range of applications.

    Key Features:

    1. High Output Current:
      • The LT3493EDCB#TRMPBF features a high output current capability of up to 1.2A (with a peak inductor current limit of 2.2A), making it suitable for driving a variety of loads.
    2. Wide Input Voltage Range:
      • The converter accepts a wide input voltage range of 3.6V to 36V, with a maximum rating of 40V. This makes it ideal for applications where the input voltage can vary significantly, such as automotive, industrial, and battery-powered systems.
    3. High Switching Frequency:
      • With a fixed switching frequency of 750kHz, the LT3493EDCB#TRMPBF allows the use of smaller and more cost-effective inductors and capacitors, resulting in a more compact power supply design.
    4. Efficient Power Conversion:
      • The converter operates with high efficiency, thanks to its low VCESAT switch (330mV/1A) and other advanced power management features. This helps to minimize power loss and extend battery life in portable applications.
    5. Soft-Start and Protection Features:
      • The LT3493EDCB#TRMPBF includes a soft-start function to eliminate input surge current during startup, providing a smoother power-up sequence. Additionally, it features protection against output short circuits, ensuring reliable operation under fault conditions.
    6. Compact Package:
      • The device is packaged in a thermally enhanced, flat DFN package, which provides excellent thermal dissipation and allows for a more compact board layout.
    7. Adjustable Output Voltage:
      • The output voltage of the LT3493EDCB#TRMPBF can be adjusted down to 780mV, providing flexibility for a wide range of output voltage requirements.

    Applications:

    The LT3493EDCB#TRMPBF is well-suited for a variety of applications, including:

    • Automotive battery regulation
    • Industrial control power supplies
    • Wall transformer regulation
    • Distributed power supplies
    • Battery-powered devices

    Conclusion:

    The LT3493EDCB#TRMPBF is a versatile and high-performance DC/DC converter that offers a combination of high output current, wide input voltage range, high switching frequency, and efficient power conversion. Its compact package and adjustable output voltage make it an ideal choice for a wide range of applications, from automotive and industrial systems to portable and battery-powered devices.
