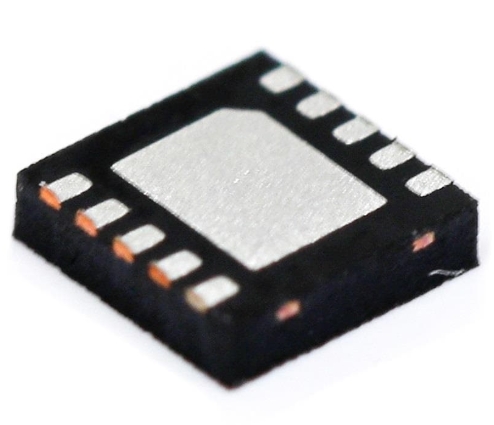

LT3065EDD#TRPBF

The AD5666BRUZ-2REEL7 is a low-power, quad-channel, 16-bit digital-to-analog converter (DAC) from Analog Devices Inc. (ADI). This device offers high performance and flexibility, making it suitable for a wide range of applications.

Key Features:

1. Low Power Consumption:
   • The AD5666BRUZ-2REEL7 consumes minimal power, with a typical current consumption of 400 nA at 5V and 200 nA at 3V in power-down mode.
2. Quad-Channel DAC:
   • The device features four independent DAC channels, each with a resolution of 16 bits. This allows for simultaneous analog output on multiple channels.
3. High Resolution:
   • With a resolution of 16 bits, the AD5666BRUZ-2REEL7 provides high accuracy and precision in analog output.
4. Rail-to-Rail Output:
   • The DAC outputs can swing rail-to-rail, providing a wide output voltage range that is suitable for various applications.
5. Internal Reference Voltage Source:
   • The AD5666BRUZ-2REEL7 includes an internal reference voltage source of 2.5V with a temperature coefficient of 5 ppm/°C. Alternatively, an external reference voltage source can be used.
6. Serial Interface:
   • The device communicates via a serial interface, compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards. This allows for easy integration with microcontrollers and other digital systems.
7. Power-On Reset:
   • The AD5666BRUZ-2REEL7 includes a power-on reset circuit that ensures the DAC outputs are set to either 0V or mid-scale upon power-up, depending on the state of the POR pin.
8. Package:
   • The device is packaged in a 14-pin TSSOP (Thin Small Outline Package), providing a compact footprint suitable for space-constrained applications.
9. Operating Range:
   • The AD5666BRUZ-2REEL7 operates over a wide temperature range of -40°C to +105°C, making it suitable for various environmental conditions.

Applications:

The AD5666BRUZ-2REEL7 is suitable for a wide range of applications, including:

• Process control systems
• Data acquisition systems
• Portable, battery-powered instruments
• Digital gain and offset adjustment circuits
• Programmable voltage and current sources
• Programmable attenuators

In summary, the AD5666BRUZ-2REEL7 is a versatile and high-performance DAC that offers low power consumption, quad-channel output, high resolution, and a compact package. Its serial interface and power-on reset features make it easy to integrate and use in various applications.
