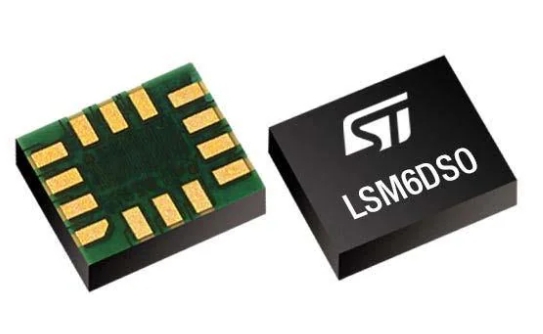

LSM6DSOTR

Manufacturer Part Number: LSM6DSOTR Manufacturer / Brand: ST
Part of Description: IMUs - Inertial Measurement Units iNEMO 6DoF inertial measurement unit (IMU), advanced Digital Function, Finite St Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerST
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseLGA-14
Number of Outputs1 Output
Sensor Type6-axis
PackagingReel
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
Factory Pack Quantity5000
SubcategorySensors
SeriesLSM6DSO
Unit Weight0.000466 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The LSM6DSOTR is a compact, low-power 6-axis inertial measurement unit (IMU) from STMicroelectronics, combining a 3-axis accelerometer and a 3-axis gyroscope in a single package. It is designed for a range of applications requiring precise motion sensing and low energy consumption, making it suitable for wearables, smartphones, and other consumer electronics.

    Key Features:

    • 6-Axis IMU: Integrates a 3-axis accelerometer and a 3-axis gyroscope for comprehensive motion sensing capabilities.
    • Low Power Consumption: Optimized for low power operation with multiple power modes, making it ideal for battery-powered devices.
    • High Accuracy: Delivers precise measurements with high resolution and low noise, enhancing motion detection and tracking.
    • Wide Range of Measurement: Features configurable ranges for both accelerometer (±2g, ±4g, ±8g, ±16g) and gyroscope (±125dps, ±250dps, ±500dps, ±1000dps, ±2000dps), accommodating various application needs.
    • Built-in FIFO Buffer: Includes a 3 kB FIFO buffer for efficient data management and reduced host processor load.
    • Integrated Motion Detection: Supports advanced motion detection features such as pedometer, tilt detection, and free-fall detection.
    • I²C/SPI Interfaces: Provides both I²C and SPI interfaces for flexible integration with different system architectures.
    • Compact Package: Available in a small 2.5 x 3.0 x 0.83 mm package, suitable for space-constrained applications.

    Typical Applications:

    • Wearable Devices: Used in fitness trackers, smartwatches, and health monitors for activity tracking, motion sensing, and gesture recognition.
    • Smartphones and Tablets: Provides motion sensing for screen orientation, gaming, and augmented reality applications.
    • Consumer Electronics: Applied in various consumer electronics such as remote controls, game controllers, and smart home devices.
    • Industrial Applications: Suitable for industrial equipment and machinery monitoring, offering precise motion tracking and vibration analysis.

    The LSM6DSOTR is recognized for its low power consumption, high accuracy, and compact form factor, making it a versatile choice for a wide range of motion sensing and tracking applications in modern electronic devices.
