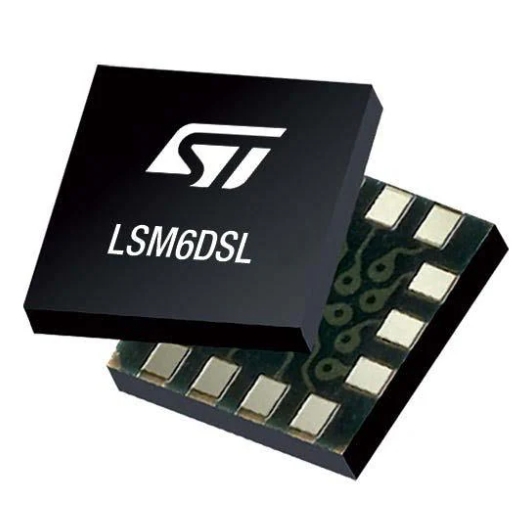

LSM6DSLTR

Manufacturer Part Number: LSM6DSLTR Manufacturer / Brand: ST
Part of Description: IMUs - Inertial Measurement Units iNEMO 6DoF inertial measurement unit (IMU), for smart phones & battery operated Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerST
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseLGA-14
Minimum Operating Temperature– 40 C
Transistor Polarity+85 C
PackagingReel
Moisture SensitiveYes
Product TypeIMUs – Inertial Measurement Units
Factory Pack Quantity5000
SubcategorySensors
Voltage Gain dB100 dB
Sensing AxisX, Y, Z
Unit Weight0.004233 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The LSM6DSLTR is a versatile and highly integrated 3D accelerometer and 3D gyroscope designed for advanced motion sensing applications. This sensor operates with a digital I²C/SPI interface, providing flexibility in communication.

    Key Features:

    • Triple-Axis Sensing: It features a three-axis accelerometer capable of measuring linear acceleration and a three-axis gyroscope for angular velocity, enabling precise motion tracking.
    • High Performance: The accelerometer supports selectable full-scale ranges of ±2g, ±4g, ±8g, and ±16g, while the gyroscope supports full-scale ranges of ±125, ±245, ±500, and ±2000 degrees per second (dps).
    • Low Power Consumption: The LSM6DSLTR is designed for power-sensitive applications, featuring ultra-low power modes that allow for extended battery life in portable devices.
    • Built-in Functions: It includes advanced features such as a programmable finite state machine (FSM), gesture recognition, and activity detection, which enhances its capability for context-aware applications.
    • Integrated Temperature Sensor: The device also incorporates a temperature sensor to facilitate temperature compensation for more accurate measurements.
    • Compact Package: The LSM6DSLTR is available in a compact LGA package, making it suitable for space-constrained designs.

    Applications:

    The LSM6DSLTR is ideal for a wide range of applications, including:

    • Wearable devices
    • Smart home appliances
    • Robotics and drones
    • Gaming controllers
    • Motion-activated user interfaces

    This combination of features makes the LSM6DSLTR an excellent choice for developers looking to implement sophisticated motion sensing in their designs.
