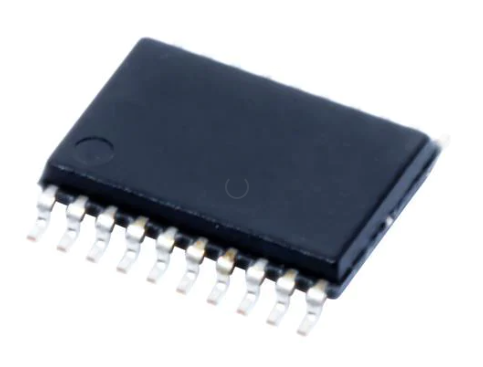

LSF0108QPWRQ1
Manufacturer Part Number: LSF0108QPWRQ1 | Manufacturer / Brand: ON |
Part of Description: Translation - Voltage Levels Automotive eight-channel bidirectional multi-voltage-level translator 20-TSSOP -40 to 125 | Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | ON |
Details | RoHS |
Mounting Style | SMD/SMT |
Package / Case | TSSOP-20 |
Minimum Operating Temperature | – 40 C |
Transistor Polarity | +125 C |
Packaging | Reel |
Moisture Sensitive | Yes |
Qualification | AEC-Q100 |
Factory Pack Quantity | 100 |
Subcategory | Logic ICs |
Product Type | Translation – Voltage Levels |
Features | Output enable |
Unit Weight | 0.006737 oz |
Get in touch with us now
The LSF0108QPWRQ1 is an advanced 8-channel bidirectional voltage level translator IC designed for use in automotive and other high-reliability applications. This IC provides robust and reliable multi-voltage bidirectional translation without the need for a direction pin, simplifying system design and reducing component count.
Key Features:
- Wide Operating Temperature Range: The LSF0108QPWRQ1 operates over a wide temperature range of -40°C to +125°C, making it suitable for use in a variety of harsh environments.
- Bidirectional Voltage Level Translation: The IC supports voltage levels ranging from 0.95V to 5V, allowing for seamless communication between devices operating at different voltage levels.
- High-Performance Translation: The LSF0108QPWRQ1 offers high-speed and high-accuracy voltage level translation, ensuring reliable data transmission even at high frequencies.
- Compact Package: The IC is packaged in a TSSOP-20 package, which is compact and easy to integrate into existing systems.
- Automotive Qualification: The LSF0108QPWRQ1 is specifically qualified for automotive applications, meeting the rigorous standards and requirements of the automotive industry.
Applications:
- Automotive Systems: The LSF0108QPWRQ1 is ideal for use in automotive systems, where it can provide reliable communication between devices operating at different voltage levels, such as ECUs, sensors, and actuators.
- Industrial Control: This IC can also be used in industrial control systems, where it can help to ensure reliable communication between different components operating at different voltage levels.
- Consumer Electronics: The LSF0108QPWRQ1 can be used in consumer electronics applications, such as smartphones, tablets, and other devices that require high-speed and high-accuracy communication between components operating at different voltage levels.
In summary, the LSF0108QPWRQ1 is a versatile and reliable 8-channel bidirectional voltage level translator IC that is suitable for use in a wide range of applications, including automotive, industrial control, and consumer electronics. Its compact package, wide operating temperature range, and high-performance translation capabilities make it an ideal choice for system designers looking to integrate level-shifting functionality into their designs.
