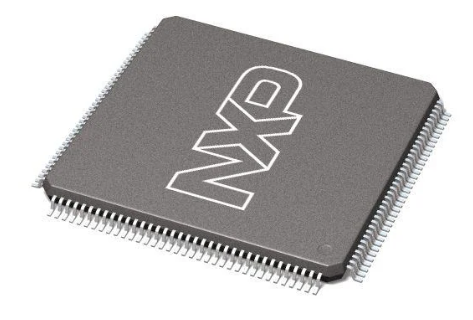

LPC1778FBD144K

Manufacturer Part Number: LPC1778FBD144K Manufacturer / Brand: NXP
Part of Description: ARM Microcontrollers - MCU Scalable Mainstream 32-bit Microcontroller (MCU) based on ARM Cortex-M3 Core Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerNXP
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseLQFP-144
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingTray
Moisture SensitiveYes
ProductMCUs
Factory Pack Quantity300
Product TypeARM Microcontrollers – MCU
SubcategoryMicrocontrollers – MCU
Watchdog TimersWatchdog Timer, Windowed
Part # Aliases935291591557

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The LPC1778FBD144K is a high-performance, high-integration, and low-power 32-bit ARM Cortex-M3 microcontroller designed for embedded applications. It boasts a wide range of features and capabilities that make it an excellent choice for a variety of applications.

    With a CPU frequency that can reach up to 120 MHz, the LPC1778FBD144K provides robust processing power. It comes with a generous amount of on-chip memory, including up to 512 kB of flash memory and 96 kB of SRAM, which allows for the storage and execution of complex programs and data handling tasks.

    The LPC1778FBD144K also features a dedicated flash accelerator that optimizes performance when executing code from flash memory. Additionally, it supports in-system programming (ISP) and in-application programming (IAP), providing flexibility for firmware updates and development.

    In terms of connectivity, the LPC1778FBD144K offers a USB 2.0 full-speed dual-role device/host/OTG controller with an on-chip PHY and associated DMA controller. It also includes five UARTs with fractional baud rate generation, internal FIFOs, DMA support, and RS-485/EIA-485 support. Furthermore, it has three SSP controllers with FIFO and multi-protocol capabilities, three I2C bus interfaces, an I2S interface for digital audio input or output, and more.

    The LPC1778FBD144K is equipped with a range of peripherals that enhance its functionality. These include an 8-channel 12-bit ADC and a 10-bit DAC for analog signal processing, a real-time clock (RTC) with an independent battery power supply, and a windowed watchdog timer for system monitoring. It also features up to 165 general-purpose I/O pins that can be configured to suit specific application requirements.

    The LPC1778FBD144K’s advanced architecture and features make it suitable for a wide range of applications, including electronic metering, lighting, industrial networking, alarm systems, large appliances, and motor control. Its high integration and low-power consumption make it an ideal choice for developers looking to create sophisticated embedded systems with superior performance and efficiency.

    Overall, the LPC1778FBD144K is a versatile and powerful microcontroller that offers a combination of high performance, high integration, and low power consumption, making it an excellent choice for a wide range of embedded applications.
