LMV324ADTR

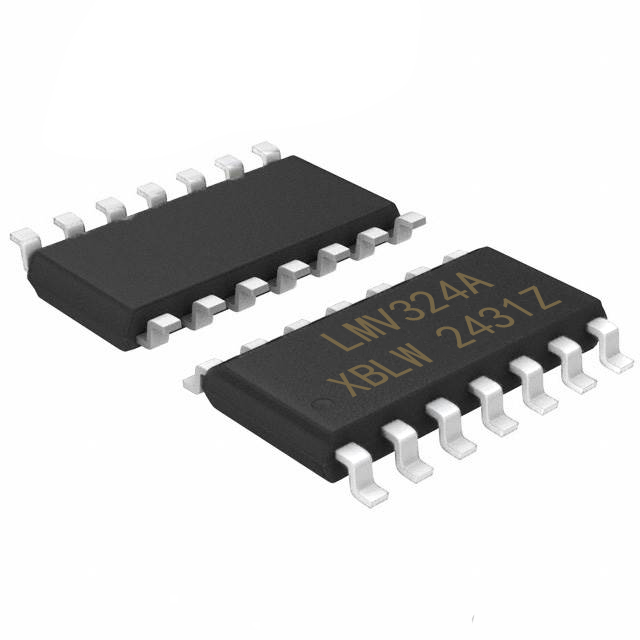

Manufacturer Part Number: LMV324ADTR | Manufacturer / Brand: XBLW |
Part of Description: LM317T is a versatile adjustable voltage regulator that can provide an output voltage | Lead Free Status / RoHS Status: Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: |
Product parameters
Manufacturer | XBLW |
Details | RoHS |
Mounting Style | SMD/SMT |
Package / Case | SOP-14 |
Minimum Operating Temperature | – 40 C |
Transistor Polarity | +85 C |
Packaging | Tape |
Moisture Sensitive | Yes |
Factory Pack Quantity | 3000 |
Get in touch with us now
The LMV324ADTR is a low-voltage, rail-to-rail output, quad operational amplifier (Op-Amp) designed for general-purpose applications. It offers four independent, high-gain, internally frequency-compensated operational amplifiers within a single integrated circuit (IC).
Key Features:
- Quad Operational Amplifiers: The LMV324ADTR contains four operational amplifiers, each with its own set of input and output terminals. This allows for increased integration and design flexibility in various electronic circuits.
- Low-Voltage Operation: The device is specifically designed to operate at low voltages, making it suitable for applications where power supply constraints are present.
- Rail-to-Rail Output: The LMV324ADTR features rail-to-rail output capability, meaning that the output voltage can swing from the negative supply rail to the positive supply rail. This enhances the dynamic range of the amplifier and allows for better signal handling.
- High Gain and Stability: The operational amplifiers within the LMV324ADTR offer high gain and stability, ensuring accurate signal amplification and processing.
- Low Power Consumption: The LMV324ADTR is designed to consume low power, which is beneficial for battery-powered applications and systems where energy efficiency is a concern.
- Wide Operating Temperature Range: The device can operate over a wide temperature range, ensuring stable performance in various environmental conditions.
Applications:
- Signal Conditioning and Processing: The LMV324ADTR can be used in various signal conditioning and processing circuits, such as signal amplification, filtering, and mixing.
- Industrial Control Systems: It is suitable for use in industrial control systems, including sensor signal amplification and processing, control loops, and more.
- Power Management: The LMV324ADTR can be utilized in power management systems for current sensing, voltage monitoring, and other related functions.
- Automation and Robotics: It finds applications in automation and robotics systems, where precise control and signal processing are required.
- Instrumentation and Measurement: The LMV324ADTR can be used in various measurement devices and instruments for signal amplification and processing.
- Consumer Electronics: It is also suitable for use in consumer electronics, communications equipment, and other applications where signal processing and amplification are needed.
Package and Pin Configuration:
The LMV324ADTR is typically available in a surface-mount package, such as TSSOP-14L, which allows for easy integration into electronic circuits. The package contains 14 pins, including power supply pins (V+ and V-), input pins (non-inverting input +IN and inverting input -IN) for each operational amplifier, and output pins (OUT) for each amplifier.
In conclusion, the LMV324ADTR is a versatile, low-voltage, quad operational amplifier that offers high gain, stability, and low power consumption. Its wide range of applications and flexible pin configuration make it an ideal choice for various electronic circuit designs and applications.
