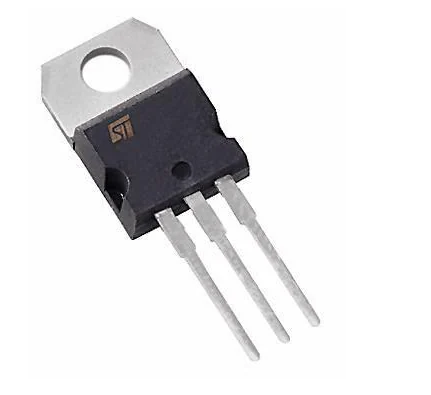

L7805CV

Manufacturer Part Number: L7805CV Manufacturer / Brand: ST
Part of Description: Linear Voltage Regulators 5.0V 1.5A Positive Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerST
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseTO-220
Minimum Operating Temperature– 0 C
Maximum Operating Temperature+125 C
PackagingTube
Moisture SensitiveYes
PSRR / Ripple Rejection – Typ62 dB
Factory Pack Quantity1000
SubcategoryPMIC – Power Management ICs
TradenameSimpleLink
Part # AliasesHPA01216RHAR
Unit Weight0.056438 oz

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The L7805CV is a high-quality, positive voltage regulator designed to provide a stable 5V output from a higher and variable input voltage. Manufactured by STMicroelectronics, one of the world’s leading semiconductor companies, this linear regulator is widely used in electronic circuits to ensure that low-power electronic components receive a consistent and reliable power supply.

    Key Features:

    • Output Voltage: The L7805CV provides a regulated output voltage of 5V, with a tolerance range of 4.75V to 5.25V under typical operating conditions.
    • Input Voltage Range: The input voltage can range from 7V to 35V, making the L7805CV suitable for a variety of applications with different power requirements.
    • Output Current: The maximum output current is 1.5A, allowing the L7805CV to power a wide range of electronic devices and components.
    • Thermal Protection: The L7805CV incorporates overheat protection circuitry to prevent damage to the device and connected components in the event of excessive temperatures.
    • Short-Circuit Protection: The device also features a built-in current limiter that protects against short-circuit conditions, ensuring that the output is automatically disconnected if the load current exceeds safe limits.
    • Low Noise: With an output noise voltage of just 40uV, the L7805CV is ideal for applications where low noise is a critical requirement.
    • High Ripple Rejection: The ripple rejection ratio of 78dB ensures that any AC ripple on the input voltage is greatly reduced at the output, providing a cleaner and more stable power supply.

    Applications:

    • Microcontrollers: The L7805CV is often used to provide a stable 5V power supply for microcontrollers, which require precise voltage regulation to function correctly.
    • Sensors: Many sensors, such as temperature sensors and pressure sensors, also rely on a stable 5V power supply to ensure accurate and reliable measurements.
    • LCD Displays: LCD displays often require a regulated 5V power source to maintain consistent brightness and clarity.
    • Power Management Circuits: The L7805CV can be used in power management circuits to regulate and stabilize voltage levels, protecting sensitive electronic components from damage due to voltage fluctuations.

    Package and Connectivity:

    The L7805CV is typically available in a through-hole or surface-mount package, making it easy to integrate into various electronic designs. It features three terminals: input, output, and ground, simplifying connections and reducing the complexity of the circuit.

    In summary, the L7805CV is a versatile and reliable voltage regulator that provides a stable 5V output from a higher and variable input voltage. Its combination of high-performance features, including thermal and short-circuit protection, low noise, and high ripple rejection, makes it an ideal choice for a wide range of electronic applications.
