IRFB7440PBF

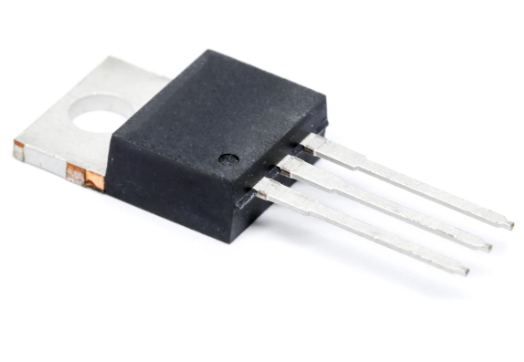

The IRFB7440PBF is a high-performance N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) from Infineon Technologies, designed for efficient power management and high-speed switching applications. This MOSFET is particularly suitable for various applications, including DC-DC converters, motor control, and other power electronics systems.

Description:

• Type: N-Channel MOSFET
• Manufacturer: Infineon Technologies
• Package: TO-220
• Mounting Type: Through Hole

Key Features:

• Drain-Source Voltage (V_DS): 40V
• Continuous Drain Current (I_D): 75A (at 25°C)
• R_DS(on): 6.0 mΩ max at V_GS = 10V
• Gate-Source Voltage (V_GS): ±20V
• Power Dissipation (P_D): 94W
• Low On-Resistance: Enhances efficiency by reducing conduction losses.
• Fast Switching Speed: Suitable for high-frequency applications, minimizing switching losses.
• HEXFET Technology: Offers improved thermal performance and reliability in demanding applications.

Applications:

• DC-DC Converters: Ideal for efficient voltage regulation and power conversion in electronic devices.
• Motor Control: Effective for driving motors in industrial, automotive, and consumer applications.
• Power Management: Utilized in power supplies, inverters, and battery management systems for optimal energy distribution.
• Renewable Energy Systems: Suitable for solar inverters and other renewable energy applications requiring efficient power handling.
• Consumer Electronics: Found in devices that require effective power control, such as power tools and audio systems.

Benefits:

• High Current Capability: Handles up to 75A, making it ideal for high-power applications.
• Low R_DS(on): Reduces heat generation, improving overall system efficiency and thermal management.
• TO-220 Package: Facilitates easy mounting and effective heat dissipation for reliable operation.
• Durable and Reliable: Designed to withstand high voltage and current stresses, ensuring long-term performance in various environments.

Package Dimensions:

• Package Type: TO-220
• Mounting Style: Through-hole, allowing for simple assembly and efficient heat dissipation.

Reference Documents:

For detailed electrical characteristics, thermal information, and application notes, please refer to the IRFB7440PBF datasheet available on Infineon Technologies’ official website.
