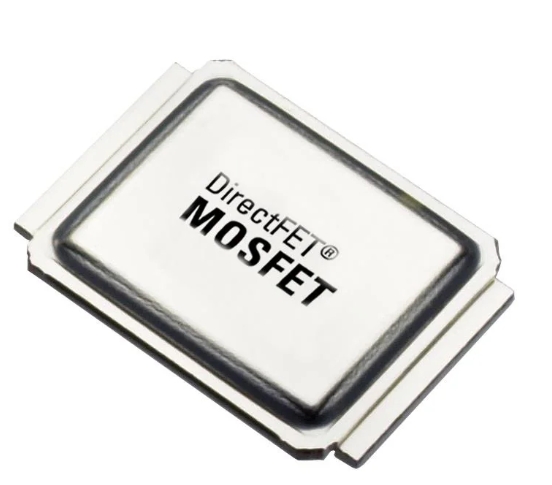

IRL7486MTRPBF

The IRL7486MTRPBF is a high-performance N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) manufactured by Infineon Technologies, designed specifically for low-voltage applications requiring high efficiency and fast switching. This MOSFET is ideal for use in power management, DC-DC converters, and motor control applications.

Description:

• Type: N-Channel MOSFET
• Manufacturer: Infineon Technologies
• Package: DPAK (TO-252)
• Mounting Type: Surface Mount

Key Features:

• Drain-Source Voltage (V_DS): 30V
• Continuous Drain Current (I_D): 60A (at 25°C)
• R_DS(on): 3.4 mΩ max at V_GS = 10V
• Gate-Source Voltage (V_GS): ±20V
• Power Dissipation (P_D): 62W
• Low On-Resistance: Minimizes conduction losses, enhancing overall system efficiency.
• Fast Switching Speed: Optimized for high-frequency applications, reducing switching losses.
• Logic Level Gate Drive: Can be driven by low-voltage control signals.

Applications:

• DC-DC Converters: Ideal for efficient voltage regulation in various electronic devices.
• Motor Control: Suitable for driving motors in automotive, industrial, and consumer applications.
• Power Management: Used in power supplies, battery management systems, and renewable energy applications.
• Consumer Electronics: Found in devices requiring effective power control, such as computers and audio systems.

Benefits:

• High Current Capability: Handles up to 60A, making it suitable for demanding applications.
• Low R_DS(on): Reduces heat generation, improving efficiency and thermal performance.
• DPAK Package: Provides a compact footprint and facilitates effective thermal dissipation for reliable operation.
• Robust and Reliable: Designed to withstand high voltage and current stresses, ensuring long-term performance in various environments.

Package Dimensions:

• Package Type: DPAK (TO-252)
• Mounting Style: Surface mount for easy assembly in PCB designs.

Reference Documents:

For detailed electrical specifications, thermal characteristics, and application guidelines, please refer to the IRL7486MTRPBF datasheet available on Infineon Technologies’ official website.
