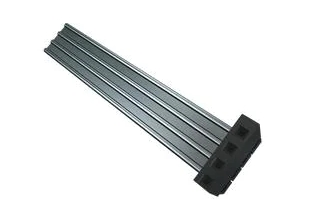

IDSS-14-D-15.00-G

The IDSS-14-D-15.00-G is a high-quality 14-pin double-row cable assembly designed for reliable signal transmission in various electronic applications. Manufactured by Samtec, this cable assembly is part of the IDC Socket Strip (IDSS) series, known for its durable construction and excellent performance in high-density interconnect systems.

Description:

• Type: IDC (Insulation Displacement Connector) Cable Assembly
• Number of Pins: 14 (Double-row configuration)
• Cable Length: 15.00 cm (6 inches)
• Connector Type: Female socket on both ends
• Pitch: Standard pitch for double-row IDC connectors
• Operating Temperature Range: Suitable for standard industrial and electronic applications

Key Features:

• High-Density Interconnect: Designed for compact and space-efficient electronic systems.
• Reliable Signal Transmission: Ensures minimal signal loss and reliable electrical connections.
• Durable Construction: Manufactured with high-quality materials to withstand mechanical stress and ensure long-lasting performance.
• Ease of Installation: The IDC design allows for quick and secure cable connections without soldering.

Applications:

• Embedded Systems: Used in microcontroller-based systems for board-to-board connections.
• Signal Processing: Suitable for transmitting signals between various electronic components and subsystems.
• Consumer Electronics: Ideal for internal wiring in compact devices.
• Prototyping and Development: Frequently used in test setups and prototyping for its ease of use.

Package:

• Cable Length: 15.00 cm (customizable lengths may be available)
• Connector Type: Double-row IDC connectors with 14 pins each.

For more details on specifications and usage guidelines, refer to the official datasheet for the IDSS-14-D-15.00-G from Samtec.
