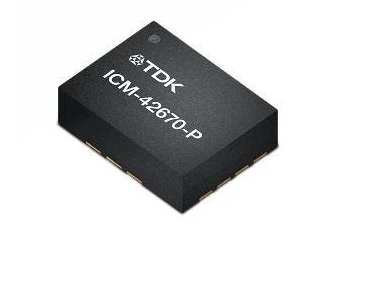

ICM-42670-P

Manufacturer Part Number: ICM-42670-P Manufacturer / Brand: TDK
Part of Description: IMUs - Inertial Measurement Units Low-Power, Premium Performance 6-Axis MotionTracking IMU with I3C, I2C and SPI interface in 2.5mm x 3mm Package Lead Free Status / RoHS Status: 16-bit Microcontrollers - MCU MCU 3/5V 56K Pb-free 64-QFP
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:

Product parameters

ManufacturerTDK
DetailsRoHS
Mounting StyleSMD/SMT
Package / CaseLGA-14
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+85 C
PackagingReel
Moisture SensitiveYes
Resolution16 bit
Factory Pack Quantity5000
SubcategoryMemory & Data Storage
Product TypeIMUs – Inertial Measurement Units
TradenameSmartMotion
Sensor Type6-axis

Get in touch with us now

    Please submit your BOM List or Input the part online

    Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Sales001@easyiee.com

    First name *

    Last name *

    Company Email *

    Phone number *

    Company name *

    Country *

    Upload file: We support .xls, .xlsx and .csv files under 4MB

    CHOOSE FILE

    Please submit your BOM List or Input the part online

    SUBMIT INFORMATION

    The ICM-42670-P is a high-performance 6-axis MEMS (Micro-Electro-Mechanical Systems) MotionTracking™ inertial measurement unit (IMU) manufactured by TDK InvenSense. This IMU integrates a 3-axis gyroscope and a 3-axis accelerometer, providing comprehensive motion tracking capabilities.

    Key Features and Specifications

    1. 6-Axis Sensing: The ICM-42670-P combines a 3-axis gyroscope and a 3-axis accelerometer, enabling precise tracking of angular rate and linear acceleration.

    2. Communication Interfaces: The device supports multiple serial communication protocols, including I3CSM, I2C, and SPI, allowing for flexible integration with various host systems.

    3. FIFO Buffer: With a FIFO (First In, First Out) buffer of up to 2.25 KB, the ICM-42670-P can store sensor data temporarily, reducing the need for frequent data reads and minimizing system power consumption.

    4. Programmable Interrupts: The IMU features two programmable interrupts, supporting ultra-low power motion wake-up. This allows the device to enter a low-power state when not in use and wake up upon detecting motion, further reducing system power consumption.

    5. Compact Packaging: The ICM-42670-P is available in compact packaging options, such as tape and reel (TR), cut tape (CT), and Digi-Reel® custom tape, making it suitable for use in space-constrained applications.

    6. High Accuracy and Reliability: The IMU is designed for high accuracy and reliability, ensuring precise and reliable motion tracking in various environments and conditions.

    Applications

    The ICM-42670-P is ideal for a wide range of applications, including:

    • Consumer electronics, such as smartphones, tablets, and wearable devices
    • Automotive systems, for motion tracking and control
    • Industrial automation, for monitoring and control of machinery and equipment
    • Robotics, for precise navigation and control
    • Virtual reality (VR) and augmented reality (AR) applications, for immersive experiences

    In summary, the ICM-42670-P is a versatile and high-performance 6-axis MEMS IMU that offers comprehensive motion tracking capabilities with high accuracy and reliability. Its compact packaging, flexible communication interfaces, and programmable interrupts make it suitable for a wide range of applications, from consumer electronics to industrial automation.
