HMC787ALC3BTR

The HMC787ALC3BTR is a high-performance double-balanced mixer designed for applications within the frequency range of 3 to 11 GHz. Manufactured by Analog Devices Inc., this mixer integrates innovative technology and exhibits excellent performance characteristics, making it suitable for various RF applications.

Key Features:

• Frequency Range: 3-11 GHz, providing versatility for a wide range of communication and microwave systems.
• Double-Balanced Topology: Offers high isolation between the local oscillator (LO), radio frequency (RF), and intermediate frequency (IF) ports, enhancing overall mixer performance.
• Integrated LO Amplifier: Eliminates the need for external LO amplification circuitry, simplifying system design and reducing component count.

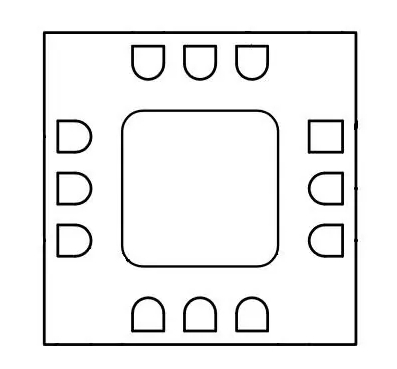

• Leadless RoHS-Compliant SMT Package: The mixer is packaged in a compact, leadless SMT format that is compliant with RoHS standards, ensuring environmental friendliness and ease of manufacturing.
• Wide IF Bandwidth: Supports IF bandwidths from DC to 4 GHz, providing flexibility in signal processing and system design.
• No External Matching Required: The mixer is designed to operate without the need for external matching circuitry, simplifying the RF front-end design process.

Applications:

• Microwave Radio Systems
• Industrial, Scientific, and Medical (ISM) Band Radios
• Ultra-Wideband (UWB) Radios
• Test Equipment and Sensors
• Military Applications

In summary, the HMC787ALC3BTR is a versatile and high-performance double-balanced mixer that offers a combination of excellent frequency range, isolation performance, and packaging benefits. Its compact design, integrated LO amplifier, and wide IF bandwidth make it an ideal choice for various RF and microwave applications.
